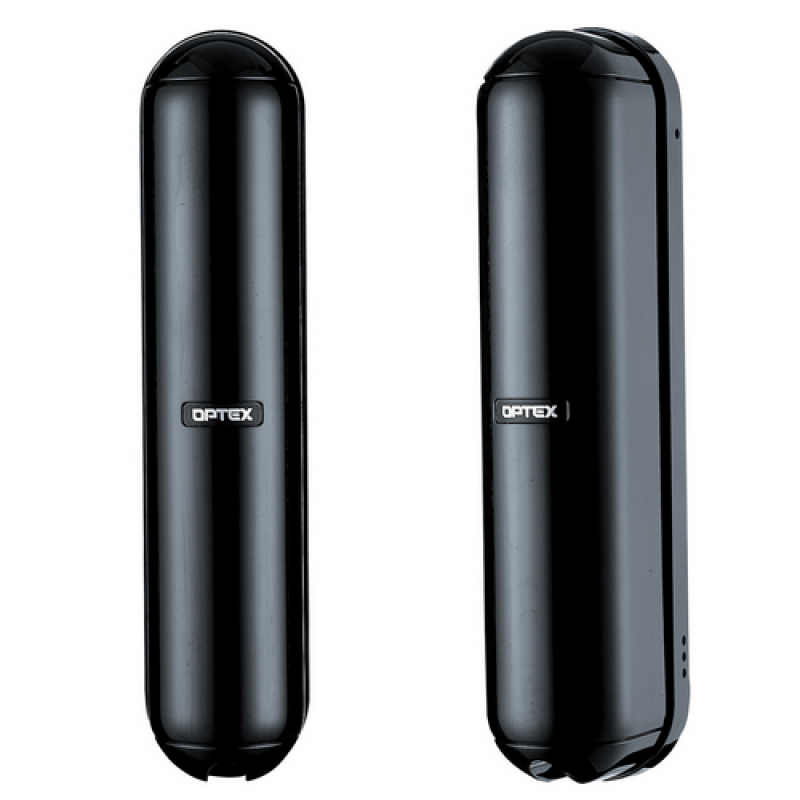

Optex, BX-100PLUS(C), Twin Beam Photoelectric Detector - 30m

Optex, BX-100PLUS(C), Twin Beam Photoelectric Detector - 30m

The BX-100PLUS consists of a pair of small, discreet dual-infrared beams designed to protect the immediate perimeter of a building. The beams are particularly useful in providing coverage for windows, doors and roller shutter doors. The BX-100PLUS can be used to activate an intruder alarm system, lights or CCTV before a break-in occurs, minimizing damage to property and risk to on-site personnel.

The BX-100 PLUS includes a Visual and Audible indicator which means no vertical adjustment is necessary. For easy alignment a sounder activates, so if the sensor is miss aligned a LED light will flash. Once the sensor is aligned, the sensor will automatically switch off the sounder, making the alignment process quick and easy. An added advantage of an audible Alignment/Alarm indicator is that it in can be used used as a deterrent to intruders. This option can be turned on or off with a switch inside the detector.

Features:

• Easy Alignment wit visual and audible Indicator
• Light reduction filter
• Max 99% beam blockage
• Attractive slender design allows to harmonize with any type of architechture

Technical Specifications:

• Detection Method: Simultaneous interruption of 2 Infrared Beams
• Outdoor Range: 100 Ft (30 m)
• Indoor Range: 200 Ft (60 m)
• Maximum Arrival Distance: 1000 Ft (300 m)
• Beam Characteristics: Pulsed Infrared
• Interrupted Period: 50 msec
• Power Input: 10.5 ~ 28 V DC
• Current Draw : 55mA (Stand by) / 75mA (Max)
• Alarm Period: 2 +/- 1 sec (Delay)
• Relay Output: 2 relay outputs N.O. and N.C. 28VDC 0.2A (Max) each
• Beeping Period: 15 +/- 1 sec (Delay)
• Volume of Audible Alarm Indicator: Approx. 70dB (at 1 meter distance)
• Tamper: N.C. opens when cover is removed
• Operating Temperature: -35°C ~ 55°C (-30°F ~ 131°F)
• Environmental Humidity: 95% (Max)
• Alignment Angle: +/-92° Horizontal
• Mounting: Wall (Indoor/Outdoor)
• IP Rating: IP 54

For more details, please refer with our attached datasheet.
