OPTEX, SL-100TNR-CRH, 30m Single Ch, Low Current Battery (2Pcs/Pack)

OPTEX, SL-100TNR-CRH, 30m Single Channel, Low Current Battery Version (2pcs/Pack)

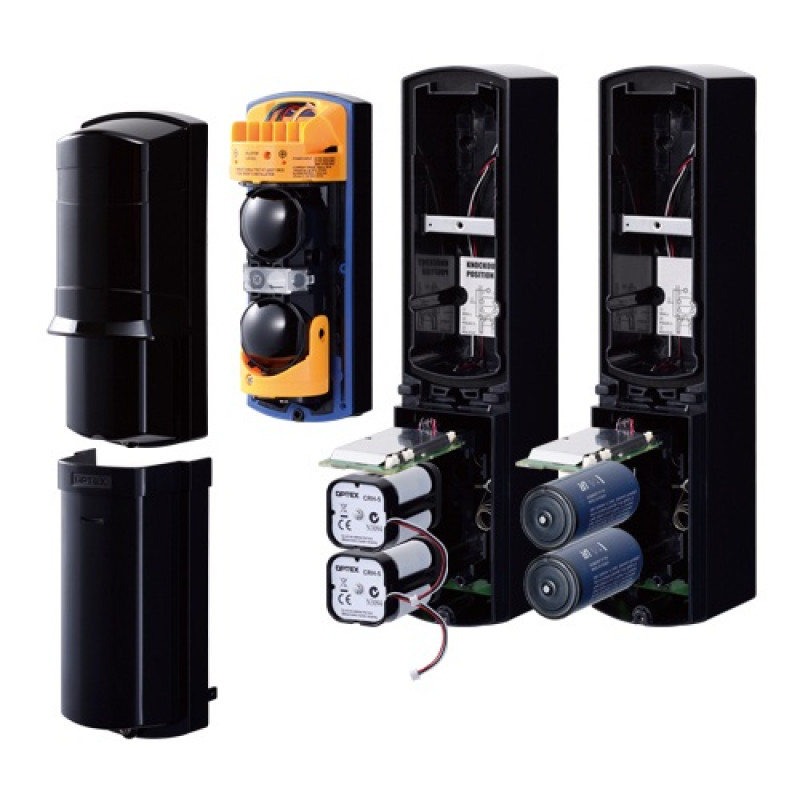

The SL-100TNR is a 30m outdoor battery-powered active beam ideal to protect driveways, open areas and small perimeters. The dual beam set offers a lot of flexibility in terms of power options including using universal CR123 batteries and using a hybrid configuration where the receiver can be hardwired.

CR123 BATTERY HOLDER CRH-5 (2 pcs / package) The CRH-5 is a pack of two battery holders each with a capacity of 4 batteries needed when using CR123A batteries. These are included in SL-100/200 TNR-CRH. Each holder can contain 4 batteries; 8 batteries are needed on each beam.

Versatile Battery Options:

The SL-TNR series is designed to work with D size lithium batteries but also with universal CR123 batteries when using optional battery-holders (CRH-5). Two Viztro D batteries fitted in the receiver and transmitter (four batteries in total) can provide up to 5 years operation.

When using universal batteries, a total of two CHR-5 and 16 CR124 batteries are required and the operation should last up to one year. The batteries are located at the front of the beam making it very easy to access and replace without altering the beam alignement and set-up. Please note the batteries not provided with the beams and need to be purchased separately.

Hybrid Option:

There are instances where the receiver is located close to a main power source but the transmitter is in a location inconvenient to wire. For those applications, we are offering the option to hardwire the transmitter by using an optional power converter PCU-5 which will fit nicely inside the beam.

The flexibility of Wireless:

The SL-TNR infrared beams feature a back box that can accommodate most wireless transmitters available on the market making it easy to extend a wireless alarm system to the boundary of the premises. By using the optional BCU-5, the battery power can be shared between the beams and the wireless transmitter.

Key Features:

• 30m Twin beams with high grade aspherical lenses
• Option to use CR123 batteries or to be partly hardwired with accessories
• Quick and easy battery replacement
• IP65 weather protection and anti-frost design

Applications:

• Perimeter
• Roof / Ceiling
• Garden
• Driveway

For more details, Please refer with our attached datasheet.
