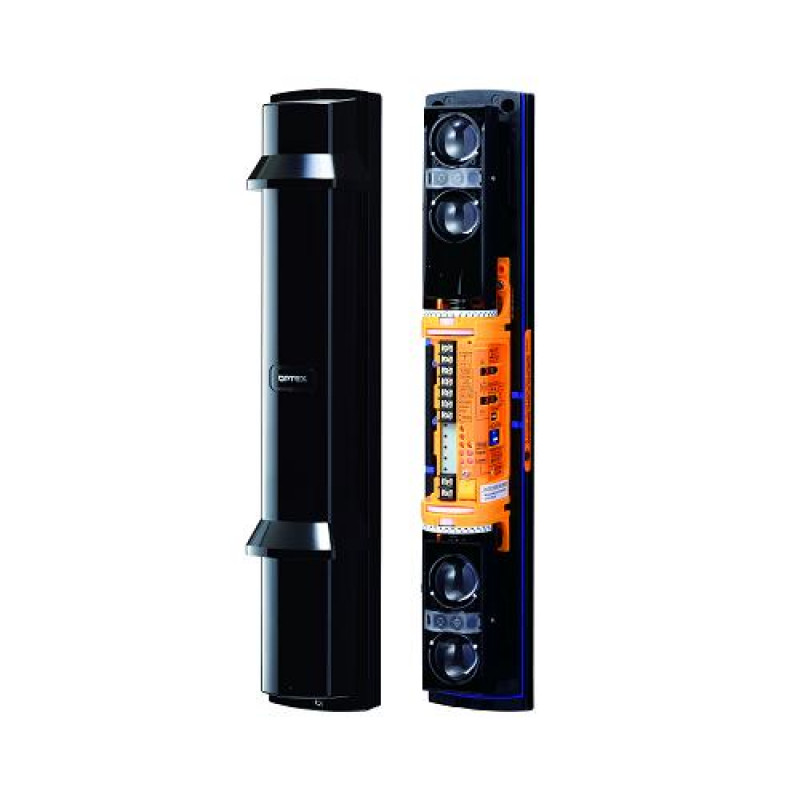

Optex, SL-350QDP[C], Smart Line 100m Quad Beam Dual Modulation Detector

Optex, SL-350QDP[C], Smart Line 100m Quad Beam Dual Modulation Detector

The IR transmitter and receiver must be perfectly aligned in order to achieve optimal operation of photoelectric detector. However, a lot of patience, time and effort is required to ensure that the receiver is receiving the maximum amount of light possible from the transmitter. Optex has the solution New SL series is designed to lighten your workload with achieving perfect alignment.

Features:

• Detection range 100m
• Double modulation
• Beam power control selector
• High power quad beam
• Upper/Lower beam selection button

Technical Specifications:

• Maximum detection range: 100m / 350ft
• Maximum arrival distance: 100m / 350ft
• Detection method: Quad infrared beam interruption detection
• Selectable beam frequency: 4 channels
• Interruption time: Variable between 50/100/250/500 ms (4 steps)
• Power source: 10.5 - 30VDC
• Alarm output: Form C relay: 30 VDC, 0.2 A
• Alarm period: 2 sec (±1) (Nominal)
• D.Q. output: Form C relay: 30 VDC, 0.2 A
• Tamper output: N.C. (contact output): 30 VDC, 0.1 A Opens when the cover removed
• Operating temperature: -35°C - +60°C (-30°F - 140°F)
• Operating humidity: 95% (max.)
• Alignment angle: ±90° Horizontal, ±10° Vertical
• Dimension: H x W x D mm (inch) : 448 (17.6) x 79 (3.1) x 96 (3.8)
• International protection: IP65
