Optex (QXI-R) High/Low mount Wide angle PIR/Microwave Detector 12m x 120 Deg coverage

Optex (QXI-R) High/Low mount Wide angle PIR/Microwave Detector 12m x 120 Deg coverage

  • Brand:Optex
  • Product Code:QXI-R
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Optex (QXI-R) High/Low mount Wide angle PIR/Microwave Detector 12m x 120 Deg coverage *9.425 GHz

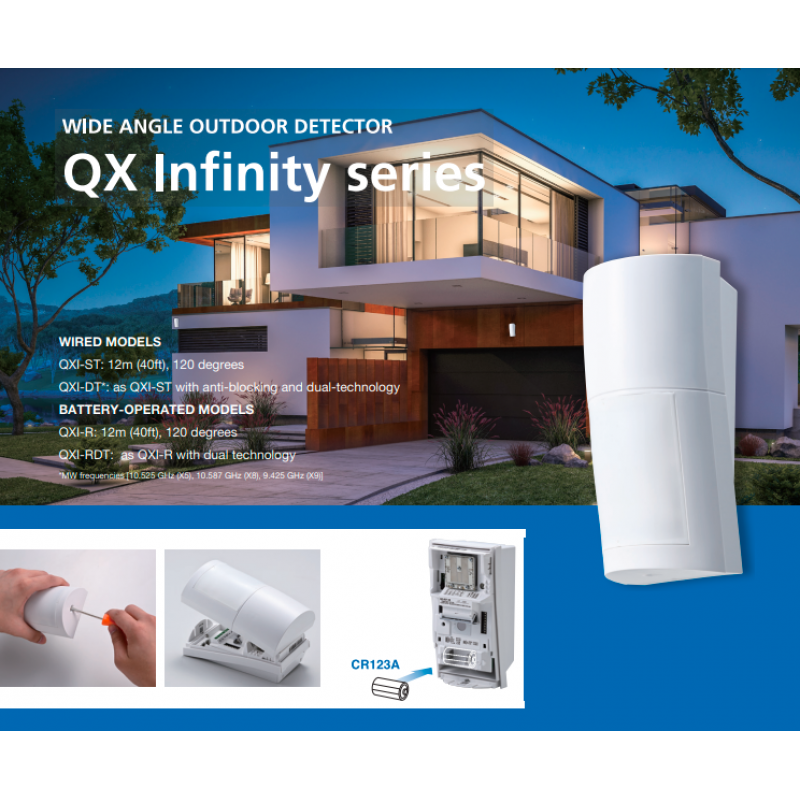

The QX Infinity (QXI) series is a range of outdoor PIRs and dual-technology sensors providing 120° wide and 12m (40ft) detection area, which can be adjusted with the masking strips provided. Sleek and compact, the QXI sensors are small and well suited to any residential or commercial building as they provide reliable, animal tolerant intrusion and motion detection to trigger alarm panel of CCTV camera. QXI-ST is the hard-wired model.

12m (40ft), 120 degree outdoor PIR wireless

  • 12m, 120 degree wireless outdoor PIR
  • QUAD pyro elements providing double layered detection and pet tolerance
  • high (2.2-2.7m) mount or low mount (0.8m-1.2m) for pet alley mode
  • SMDA logic and double conductive shielding to minimise nuisance alarms

Selectable mounting height

The QXI outdoor intrusion sensors can be installed at a high mount between 2.2 and 2.7m creating a multi-level volumetric detection pattern, allowing it to ignore small animals. In environments with larger animals, the sensor can be mounted between 0.8 and 1.2m height, to provide a pet alley.

Detection analysis to filter out false alarms

The QXI outdoor intruder sensors are designed to be not affected by environment or small animals. The alarm will not be triggered by changes of weather, vegetation sways or pets in the detection area, contributing to reliable outdoor detection. Additionally the series features double conductive shielding which filters out visible light and RFI disturbance.

Sleek design & easy installation

The dimensions of the sensor and finish of the shielding have been designed to make the sensor easy to blend in any residential or small commercial building. Also with the customer in mind the sensor features a screwless design making the opening and closing of the front cover very easy.

Applications

  • Approach
  • House
  • Garden
  • Driveway

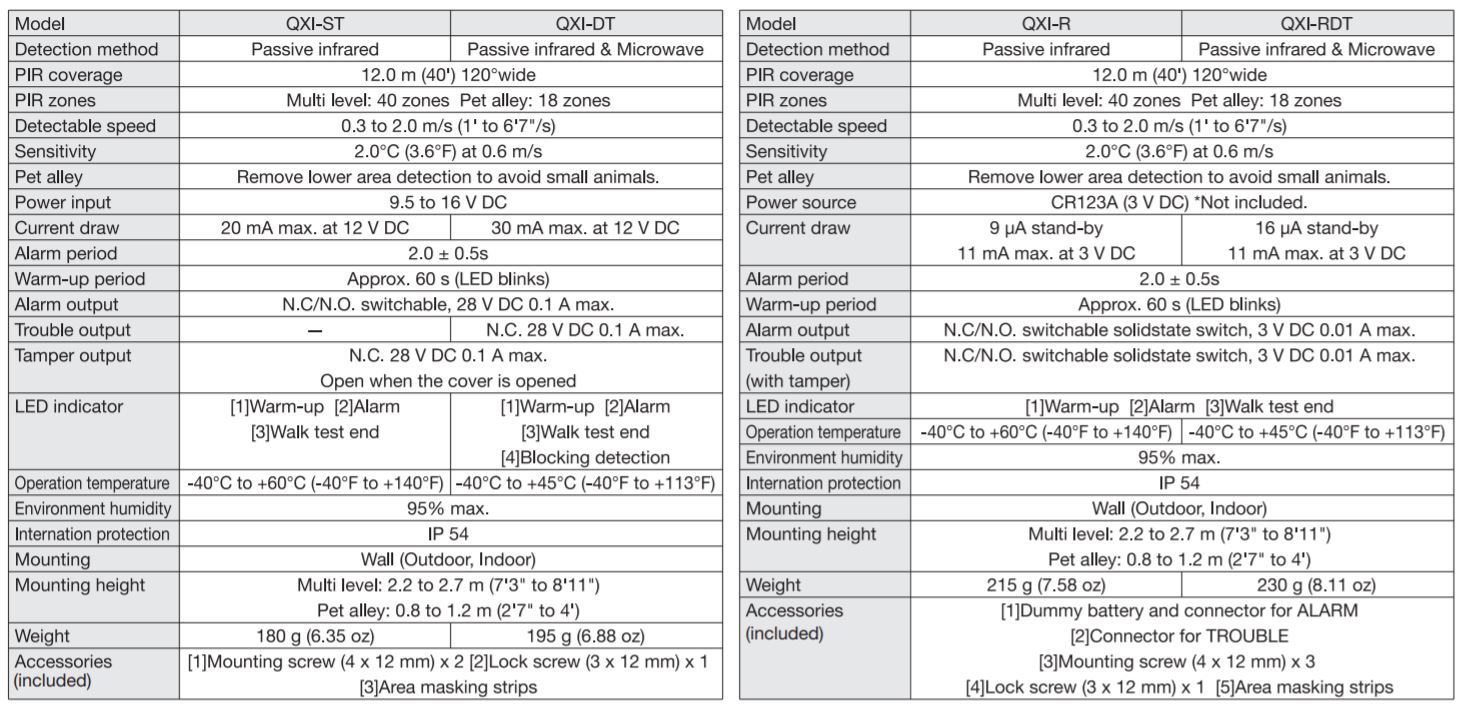

Specifications:

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
