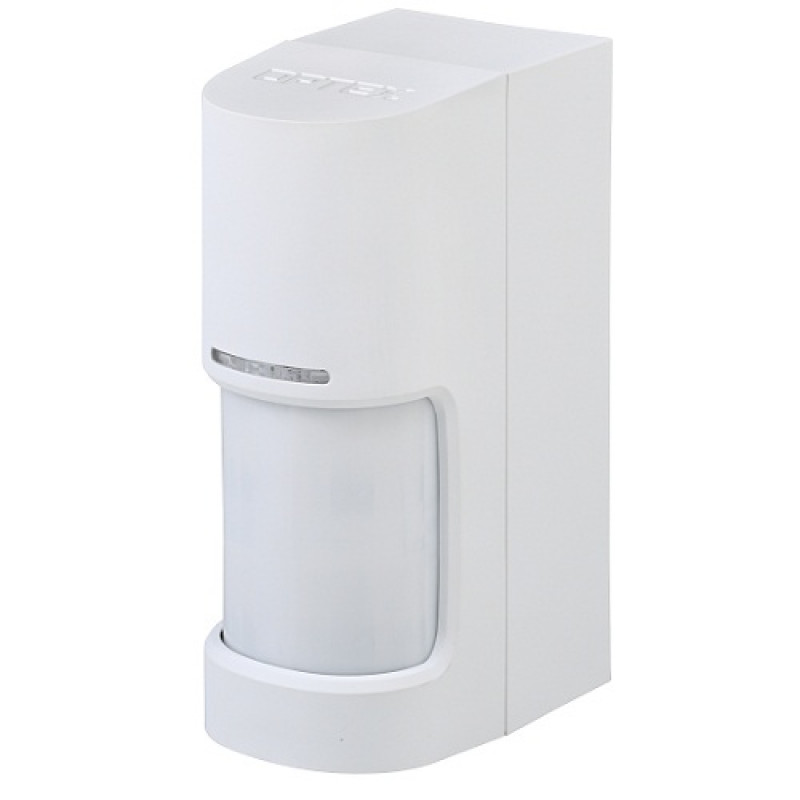

OPTEX, WXI-R, Battery Operated Outdoor Detector 12m x 180° Coverage

OPTEX, WXI-R, Battery Operated Outdoor Detector 12m x 180° Coverage

The WXI series, a range of 12m 180 degree outdoor volumetric PIRs, the WXI-R is the wireless, standard model. With its comprehensive 180° field of view and capabilities to adapt its settings to the environment around your premises, the WXI series will provide an effective intrusion detection sensor for new and existing security systems. The left and right alarm detection areas can be set independently at 2.5m, 3.5m, 6m, 8.5m and 12m.

180 degree and double layer detection:

The WXI series features 180 degree detection coverage enabling with one single sensor to cover a wide area, such as front garden, courtyard or patio area. The double layered detection allows to ignore animals while detecting people.

Independent left / right detection area:

The WXI outdoor motion sensors provide two detection areas, left and right that can be independently set. For instance the right zone can be set at 3.5m while the left one is set at 8.5m. The sensitivity can be high in one zone and low in the other to match the operational requirements.

Flexibility of wireless:

The batetry-operated WXI-R can be easiliy added on most wireless alarm systems and provide the benefit of protecting quickly and efficiently the boundary of the premises and of any outer buildings. Most wireles transmitters will fit inside the sensor back box and can powered through the PIR can feed power to the WXI-R.

Key Features:

• 12m 180 degree outdoor wireless battery operated PIR
• SMDA logic: digital analysis for enhanced environmental variance adaptation.
• Two flexible independent detection areas left and right
• Selectable pulse count

Applications:

• Buildings
• Approach
• House
• Garden
• Garage

For more details, please refer with our attached datasheet.
