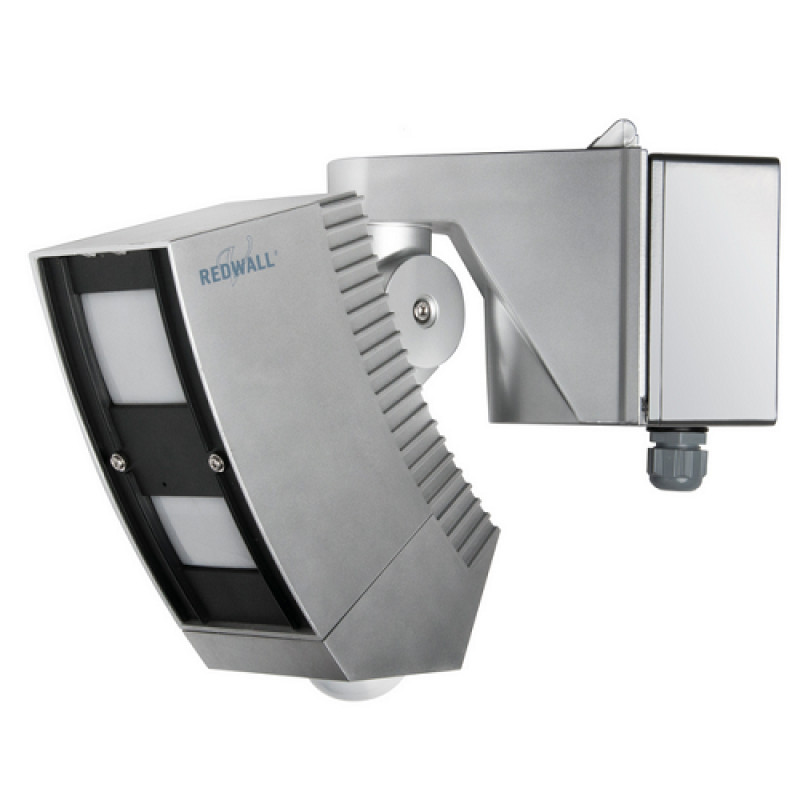

OPTEX (Redwall), SIP-3020/5, 30x20m External PIR Detector W/Creep Zone

OPTEX (Redwall), SIP-3020/5, 30x20m External PIR Detector W/Creep Zone

The SIP-3020/5 is designed for detection outdoor applications to trigger video transmission systems and PTZ camera control. Detectors in this series have an intelligent detection system which uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. They are also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-3020/5 is a hardwired model providing a detection range of 30m length by 20m wide with an additional creep zone detection (up to 6x9m), ideal to cover car parks, yards and other wide areas.

Units in this series have an additional PIR detector on the bottom to cover the area just below the unit. The PIR detector on the bottom has independent output separate from the main detection.

Designed to Trigger CCTV Systems:

The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and trigger the CCTV system when an intrusion occurs. The SIP-3020/5 has two independent detection zones, far and near zones, with independent sensitivity selection and individual output settings, for the creep zone, which can trigger camera pre-set and provide the best view of the scene to local security staff or remote monitoring stations.

Weather and Vandal-resistant:

REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance, they feature an IP65 rating for the main unit. The SIP series is vandal-resistantant all SIP products are built with polycarbonate housing, featuring an accelerometer to detect whether or not the sensor position has been tampered with.

Key Features:

• Advanced detection algorithm
• Designed to trigger CCTV systems
• Three independent detection zones far/near/creep
• Active infrared antimasking and vandal-resistant

Applications:

• Buildings
• Approach

For more details, please refer with our attached datasheet.
