OPTEX (Redwall), SIP-3020-IP-BOX, 30m x 20m for IP System, POE

OPTEX (Redwall), SIP-3020-IP-BOX, 30m x 20m for IP System, Power over Ethernet, Storage Box for PIE-1

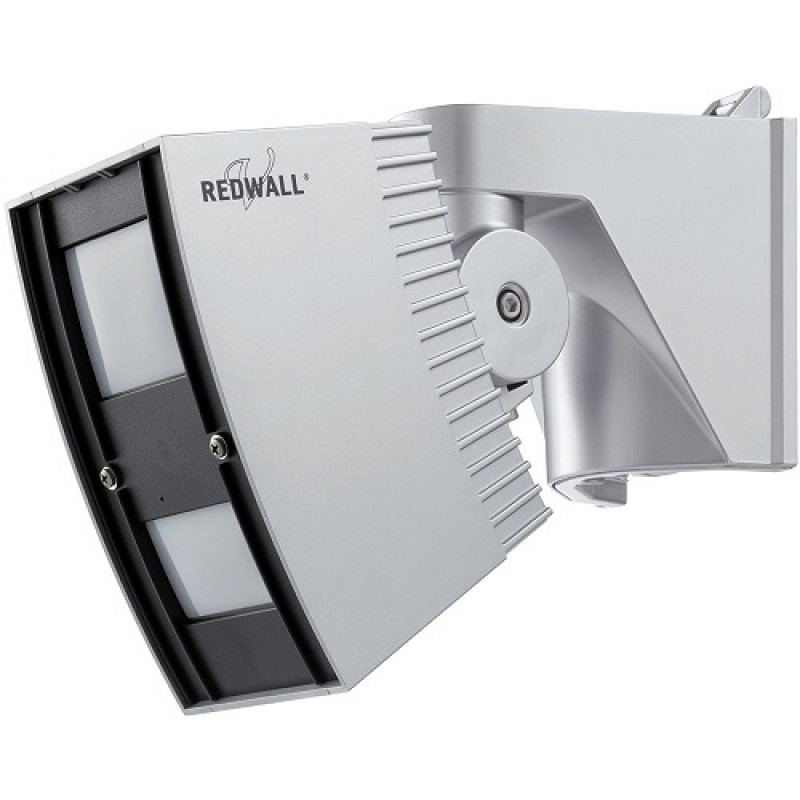

The SIP-3020-IP is an outdoor, middle-range, IP infrared sensor which is POE compliant and can integrate seamlessly with major Video Management Systems (VMS) providers. The SIP-3020-IP-BOX is a IP/PoE model providing a detection range of 30x20m (LxW) ideal to protect long and narrow areas such as along fence lines or buildings and alleyways.

It comprises of the SIP-3020 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box. The sensor is specifically designed to trigger outdoor IP CCTV systems where high performance is required; and for making visual verification for remote video monitoring, easier and more accurate.

The SIP-3020-IP, IP features an intelligent detection system that uses data from the ambient environment such as temperature and illuminance to automatically adjust the sensitivity and minimise false alarms. The PIR motion sensor is also equipped with anti-masking and anti-rotation features to detect vandalism and tampering.

Enhancing IP CCTV Systems:

Event-triggered CCTV systems need to rely on accurate and genuine detection. Although most IP cameras provide video motion detection, using this detection method alone can prove challenging in outdoor environment where there are constant changes in lighting and weather conditions, and as a result these conditions can create potential false alarms. The SIP-3020-IP-BOX will detect motion whatever the lighting/weather conditions and will track the intruder across its two independent detection zones - far and near zones- and trigger the relevant camera presets to visually follow the intruder.

Weather and Vandal-Resistant:

REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance, they feature an IP65 rating for the main unit. The SIP series is vandal-resistantant all SIP products are built with polycarbonate housing, featuring an accelerometer to detect whether or not the sensor position has been tampered with.

VMS Integration:

The REDWALL SIP-IP-BOX series generates a unique alarm event code (REC) which communicates a number of events including detection, tamper and environmental status to the IP cameras, DVR and VMS platforms that have integrated the code. The list of VMS plaforms that have already integrated our event code includes all the key players in the VMS market and is constantly growing.

Key Features:

• Intelligent PIR detection system
• Can be Integrated with most VMS platforms
• Two independent detection zones far/near
• Active infrared antimasking and vandal-resistant

Applications:

• Buildings
• Perimeter
• Approach

For more details, Please refer with our attached datasheet.
