Optex, STWM201RR, 2m Wall Mount 180° Tower - 1 Beams with Heaters

Optex, STWM201RR, 2m Wall Mount 180° Tower - 1 Beams with Heaters

Optex’s prebuilt towers are designed to make the installation of towers as painless as possible.

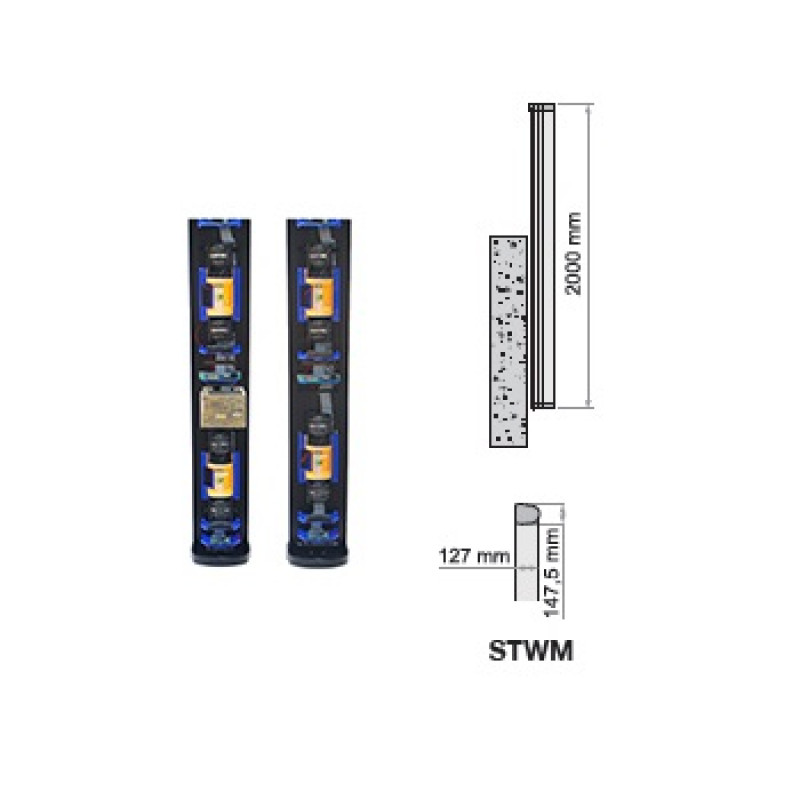

Mounting active infrared beams into towers rather than on to walls or poles enhance the security level as it makes it very difficult for potential intruders to find out the number and height of beams installed. To encourage the use of towers without increasing the installation workload or risk of mistakes, we have introduced both two and three meters, 180° and 360°, free-standing and wall-mounted pre-built towers. The STWM201RR is a single sided two metre 180° wall mount tower, with this model one beams can be fitted per side with a heater.

Each prebuilt tower assembly is supplied complete with all of the brackets, beams, heaters and tamper switches installed and connected. All that is required to do is to hook up the power along with the alarm cables, align the beams and the installation is complete.

Optional accessories include anti-climb tamper switches as well as built in PSU’s and fans for extreme environments. All of these can be specified at the point of order and be installed by our trained technicians.

STWM202RR: 2m freestanding tower with two SL-QDP-BT beams

Key Features:

• Durable construction with extruded aluminium frame and acrylic materials
• Beams can be mounted at any height and direction in the tower
• Anti-tamper and full fixing kit for the tower itself supplied

Applications:

• Perimeter
• Roof / Ceiling
• Garden
• Driveway

For more details, please refer with our attached datasheet.
