ICS, 19001, 24v Retainer With 01805Z Armature
- Brand:ICS
- Product Code:19001
- Availability:Please Call or Email Us to Check Availability
ICS, 19001, 24v Retainer With 01805Z Armature

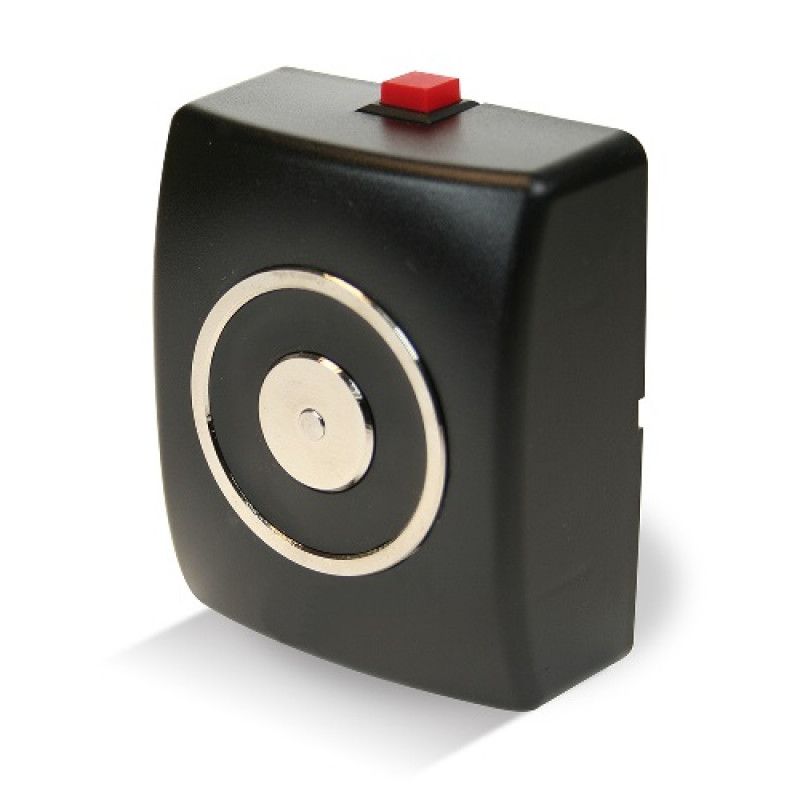

Door Retaining Magnet
Key Features:
- Operating voltage 24Vdc
- Stainless Steel
- Heavy duty construction
- ABS cover
- Black finish
- Holding force up to 120lbs (55kg)
- Fire tested: EN1155
- Tested and certified to BS EN 1155 and CE marked
- Zero residual force
- Surface mount to standard BS wiring boxes
- 2 year warranty
Specifications:
- Voltage tolerance: ±15%.
- Current draw: 125mA at 12Vdc, 60mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Bond sensor output (SPDT rated 3A at 125Vac).
- Humidity: 0~95% non-condensing.
- Stainless Steel faceplate.
- Armature plate to be ordered separately.
- Electromagnet protected against residual magnetism.
- Dimensions: 100 × 90 × 43 mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
