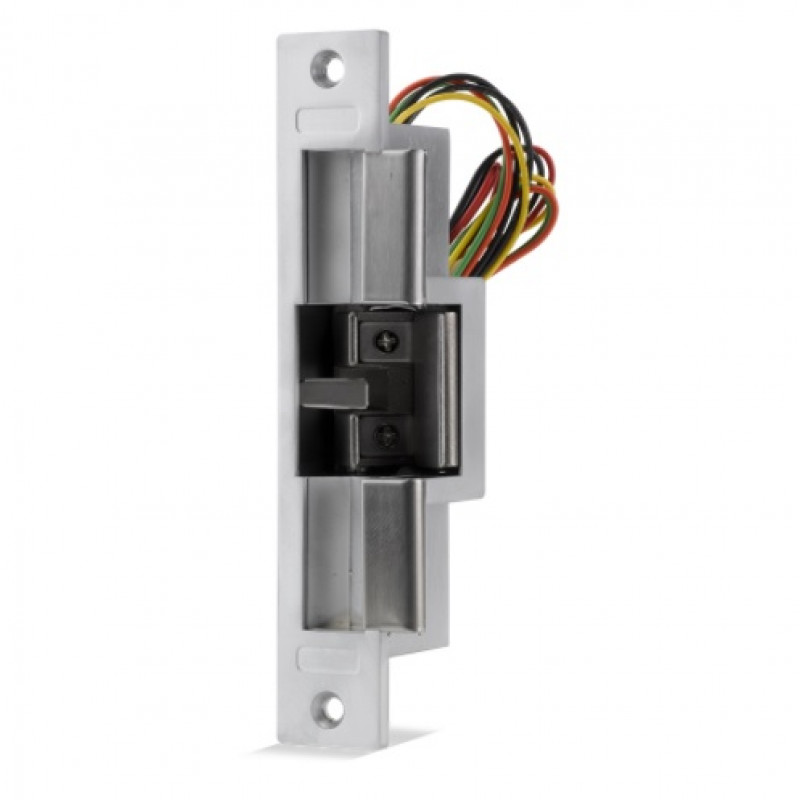

ICS (DBR-SEC) Electric Release, Fail-Secure (Power to Unlock)

ICS (DBR-SEC) Electric Release, Fail-Secure (Power to Unlock)

  • Brand:ICS
  • Product Code:DBR-SEC
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


ICS (DBR-SEC) Electric Release, Fail-Secure (Power to Unlock)

  • Operating voltage 12Vdc
  • Accepts 13mm deadbolt
  • Fail-Secure (Power to Unlock)

Description

  • Voltage tolerance: ±10%.
  • Current draw: 120mA (at temperature 20°C).
  • Operating temperature: -10~45°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Bolt status output indicates bolt locked or unlocked status (SPDT rated 3A at 30Vdc).
  • Humidity: 0~95% non-condensing.
  • Horizontal or vertical installation.
  • Tested to 500,000 cycles.
  • Weight: 0.6kg (approx).

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
