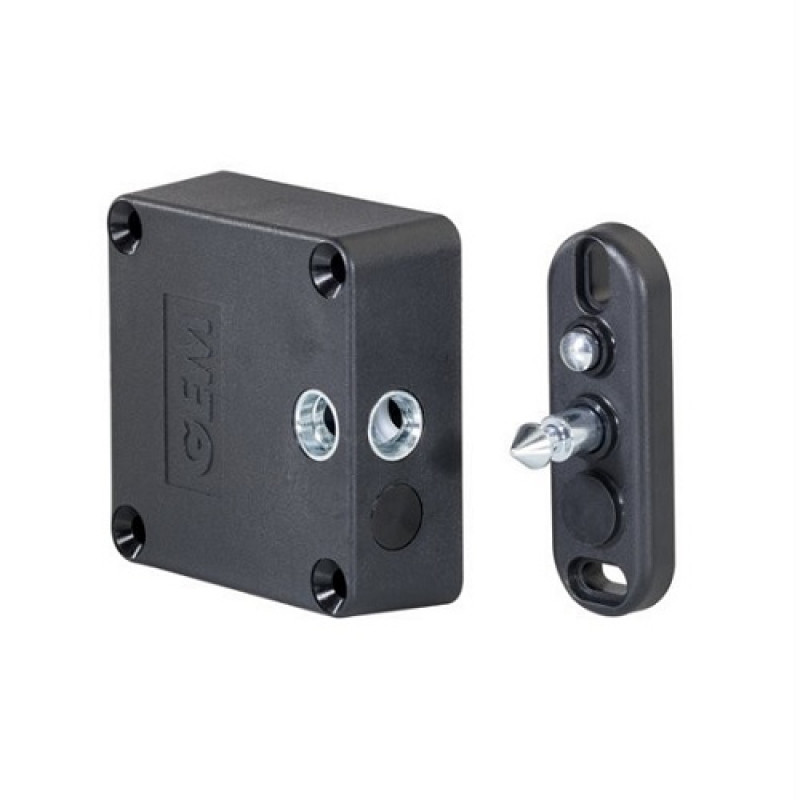

SSP, CK100, 12/24Vac/dc Motorised Cabinet Lock with Door Status Monitoring

SSP, CK100, 12/24Vac/dc Motorised Cabinet Lock with Door Status Monitoring

This CK100 is Compelte with closets, filing cabinets and lockers, its motor and spring feature pushes the door open. Recommended for fitness centres or offices.

Key Features:

• Compact size.
• Fail secure (= power to unlock).
• Lock and door status monitoring.
• Side or end-on orientation.
• Low voltage operation.
• Low energy consumption.

Specifications:

• Dimensions:
  • • Lock = 60mm(L) x 60mm(W) x 22mm(D),
    • Keeper = 60mm(L) x 20MM(W) x 26.3mm(D).
• Voltage: 12-28 Vac/dc.
• Current draw:
  • • Pull in = 165mA @ 12Vdc
    • Hold = 69mA @ 12Vdc.
• Material: Polyamide.
• Operating Temp: -10°C to 45°C .
