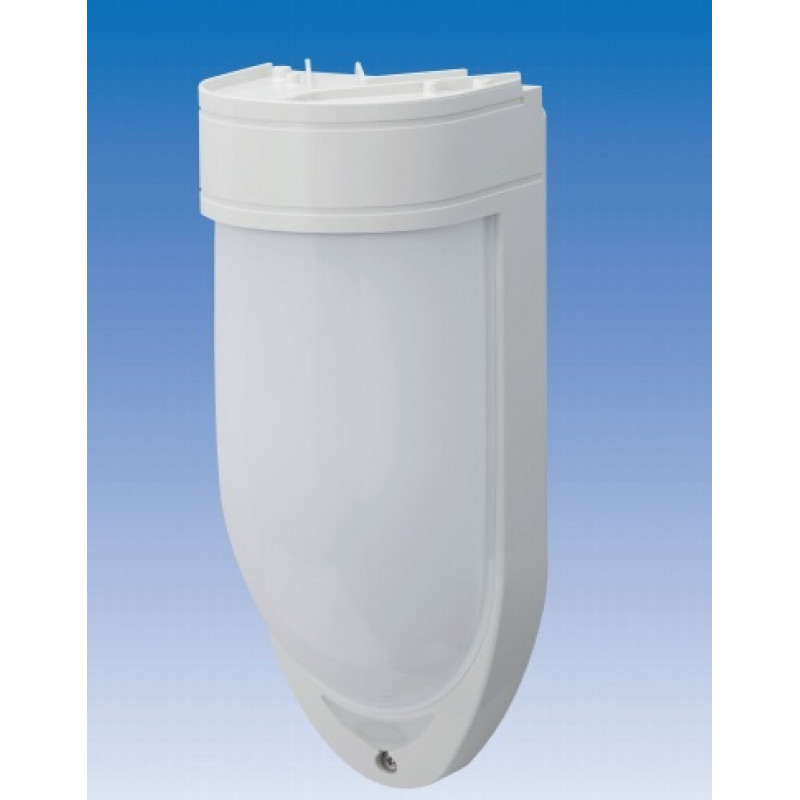

NEW Takex (PIR-T40NAM) High Performane TRIPLE MIRROR PIR SENSOR Vertical Curtian PIR Upto 40m with Anti Mask

NEW Takex (PIR-T40NAM) High Performane, High Mount, Long Range, Vertical Curtian PIR Upto 40m with Anti Mask

Introducing the all-new 135' long-range PIR-T40NAM outdoor passive infrared detector featuring precision triple-mirror optics and active anti-masking, designed with demanding CCTV and Intruder applications in mind.

Capable of accurately and reliably detecting human intrusion from a mounting height of 6.6' to 20', whilst rejecting nuisance activations from pets and small animals, PIR-T40NAM also includes a secondary dedicated output for interfacing with CCTV systems to deliver a fully integrated security solution.

Standard operation
Low position 6.6' to 8.3'	Middle position 8.3' to 11.5'	High position 11.5' to 13'
Maximum detection distance Low position mode: 135' Middle position mode: 115'		Maximum detection distance: 100'
Rotating the mirrors horizontally by 90°allows detection along a wall.		Installing in a high position can minimize the blind area

Specialised operation
High-density 6.6' to 20'
	Maximum detection distance: 150'
Rotating the mirrors horizontally by 90°allows detection along a wall.	Installing in a high position can minimize the blind area

Note: The maximum detection distance is 135' in standard operation modes of PIR-T40NAM. 150' can be achieved in high-density mode, however Pet Immunity function is disabled.

Features

• 4 Operation modes; Low Position, Middle Position, High Position, and High-Density
• Up to 40m vertical curtain protection
• 2m to 6m Installation height (depending on operation mode)
• High performance triple mirror optical system
• Precise detection area adjustment function
• Anti-masking function
• Lightning surge protection
• Suitable for indoor and outdoor use (IP55)

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
