Honeywell (HLS-RES-PL) Response Plus Paging System

Honeywell (HLS-RES-PL) Response Plus Paging System

The Response Paging System offers the latest innovations in wireless paging and monitoring. It’s a cost effective and flexible system that provides  the ability to quickly respond to activated alarms.

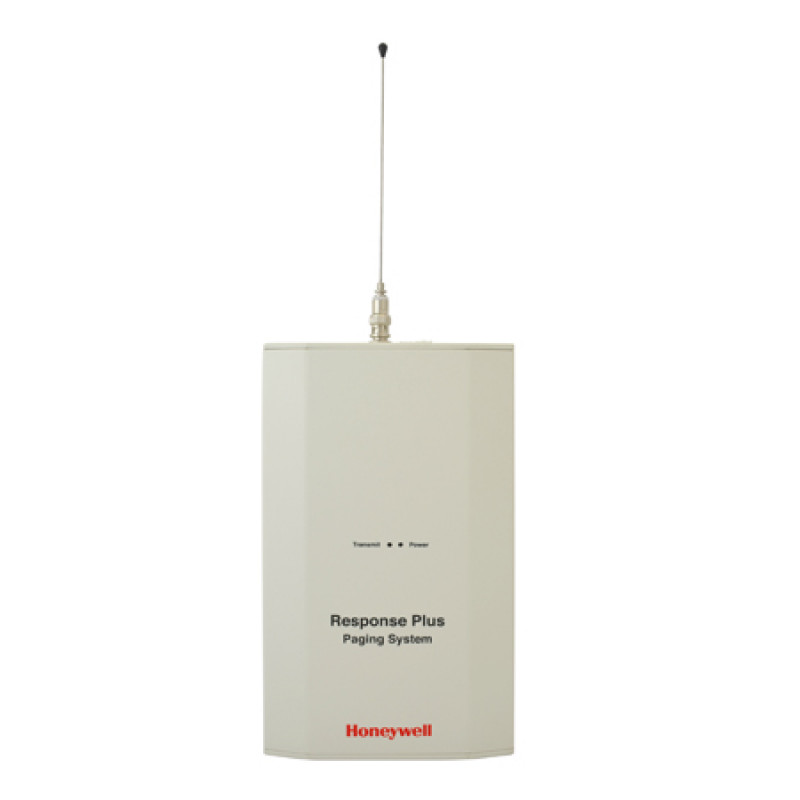

The Response Paging Systems consist of wall-mounted HIPS (High Impact Polystyrene) enclosure containing a transmitter enclosed in an aluminium surround.

The units includes a 240-volt 3-pin plug, status indicator LED for Power and Transmission, and straight wire antenna, connected to the top of the enclosure using a 3/8 BNC bayonet connection.

The Response Plus incorporates a powerful 4 Watt transmitter and can be used to support four dry volt free contacts and serial data input. The  contacts can be set to normally open N/O or normally closed N/C as required. When activated these will send pre-programmed messages to a particular pager address (which could be to an individual pager or group of pagers at the same time). The Response Link is an entry level paging  system that supports four dry volt free contacts, which can be set to normally open N/O or normally closed N/C as required.

Key Features:

• Paging system consists of a wall-mount enclosure, power supply and transmitter
• Compatible with the Morley ZXSe or DXc, RS232 serial protocol
• Status indicator LED for Power and Transmission
• 230V AC mains power supply with fused spur option
• An antenna (dipole) installed external to equipment enclosure
• RS232 data port input*
• RS232 data port programming
• Four contact closure alarms
• Alphanumeric Pagers (supplied separately)

For more details, please refer with our attached datasheet.
