    SPCP333.300, Smart PSU (17AH) with I/O-Expander

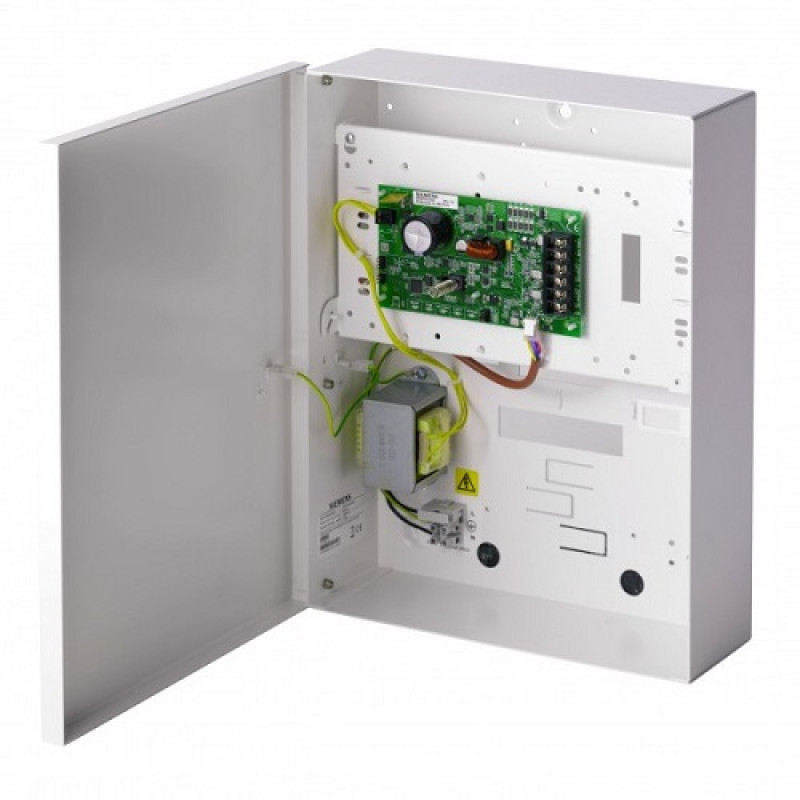

    The SPCP333.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.

    Key Features:
    • Easy configuration
    • Cause and effect intergration
    • Configurable Inputs type (22+ types)
    • Configurable Input EOL (24+ types)
    • Individual name per input
    • Individual log per input
    • Configurable Outputs
    • Individual test function per output
    • Log option per output
    • Each output can be restricted by calendars
    • 3 Selectable modes of operation per output

                     1. Continious
                     2. Pulse
                     3. Momentary

    For more details, please refer with our attached datasheet.
