SPCP433.300, Smart PSU (17AH) Grade 3 with 2 Door Expander
- Brand:Vanderbilt
- Product Code:SPCP433.300
- Availability:Please Call or Email Us to Check Availability
SPCP433.300, Smart PSU (17AH) Grade 3 with 2 Door Expander

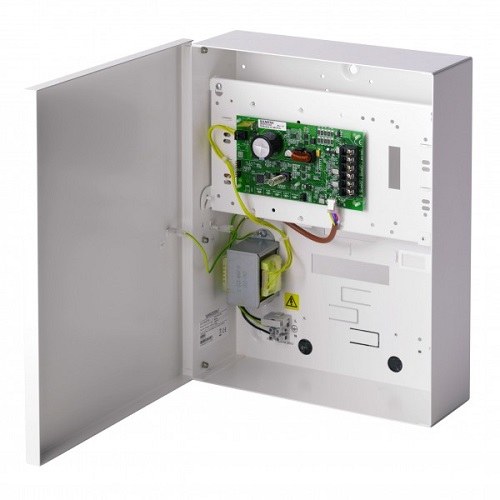

The SPCP433.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders) and advanced door control functionality for 2 entry doors or 1 entry/exit door. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
Technical Specification:
| Colour: | RAL 9003 (signal white) |
| Interfaces: | X-BUS (in, out, branch), Reader 1, Reader 2 |
| Power output: | Max. 1500 mA bei 12 VDC (750 mA pro Ausgang) |
| Output voltage: | 11-14 V DC in normal conditions (mains powered and fully charged battery) |
| Quiescent current: | Max. 82 mA at 12 VDC |
| Operating current: | Max. 124 mA at 12 VDC (all relays activated) |
| Tamper contact: | Front spring tamper |
| LED Indicators: | 4 outputs (1 void and 1 valid per reader) |
| Mains voltage: | 230 VAC, + 10%/ -15%, 50 Hz |
| Number of on-board relays: | 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current) |
| EOL resistor: | Dual 4k7 (default), other resistor combinations configurable |
| Number of on-board zones: | 4, for door release switch (DRS) and door position switch (DPS), or freely programmable |
| Housing material: | Contenitore in metallo con cerniera (acciaio dolce 1,2 mm ) |
| Housing: | Hinged metal housing (1.2 mm mild steel) |
| Dimensions (W x H x D): | 326 x 415 x 114 mm |
| Operating temperature: | 0 ~ +40 °C |
| Tamper switch: | Front spring tamper |
