SPCV440.000, Combi audio Expander -Magic
- Brand:Vanderbilt
- Product Code:SPCV440.000
- Availability:Please Call or Email Us to Check Availability
SPCV440.000, Combi audio Expander -Magic

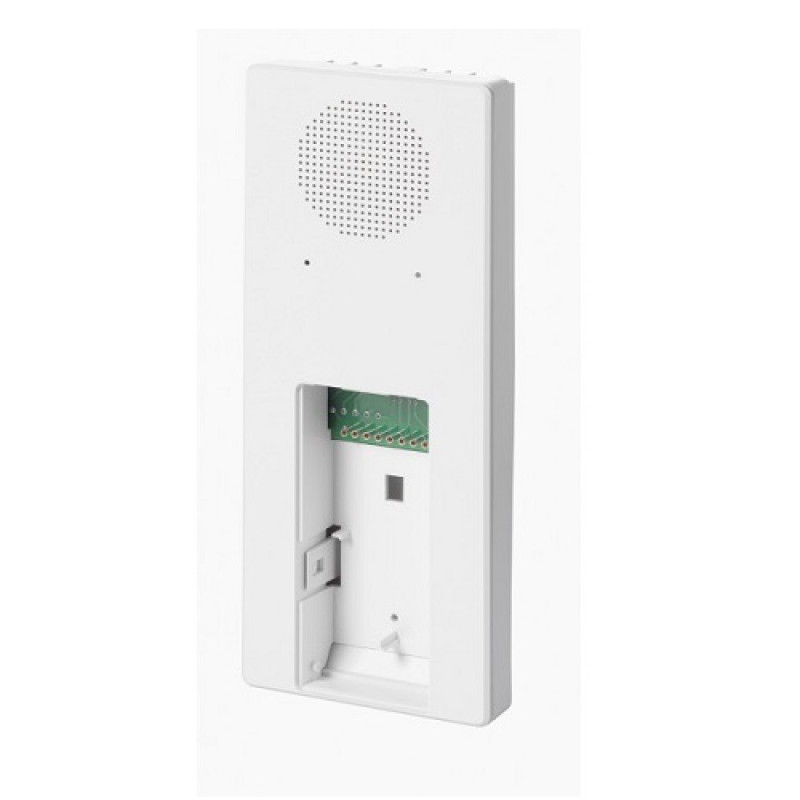

The SPCV440.000 Combi Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Technical Specification:
| Operating temperature: | -10 ~ +50 °C |
| Operating voltage: | 9.5 ~ 14 VDC |
| Colour: | RAL 9003 (signal white) |
| Housing: | Plastic housing (ABS) |
| Housing material: | Contenitore plastico (ABS) |
| LED Indicators: | 1 (red) |
| Audio: | Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone |
| Interfaces: | X-BUS (in, out), Audio (A+, A-) |
| Tamper contact: | Front / back tamper switch |
| Mounting: | Flat surface, wall-mounted or corner-mounted at 45 ° |
| Tamper switch: | Front och bortbrytning |
| Number of on-board zones: | 4 (the MAGIC motion detector takes away 1 zone) |
| Operating current: | Max. 75 mA at 12 VDC (without satellites or motion detector) |
| Quiescent current: | Max. 60 mA at 12 VDC (without satellites or motion detector) |
| Dimensions (W x H x D): | 106 × 261 × 42 mm |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
