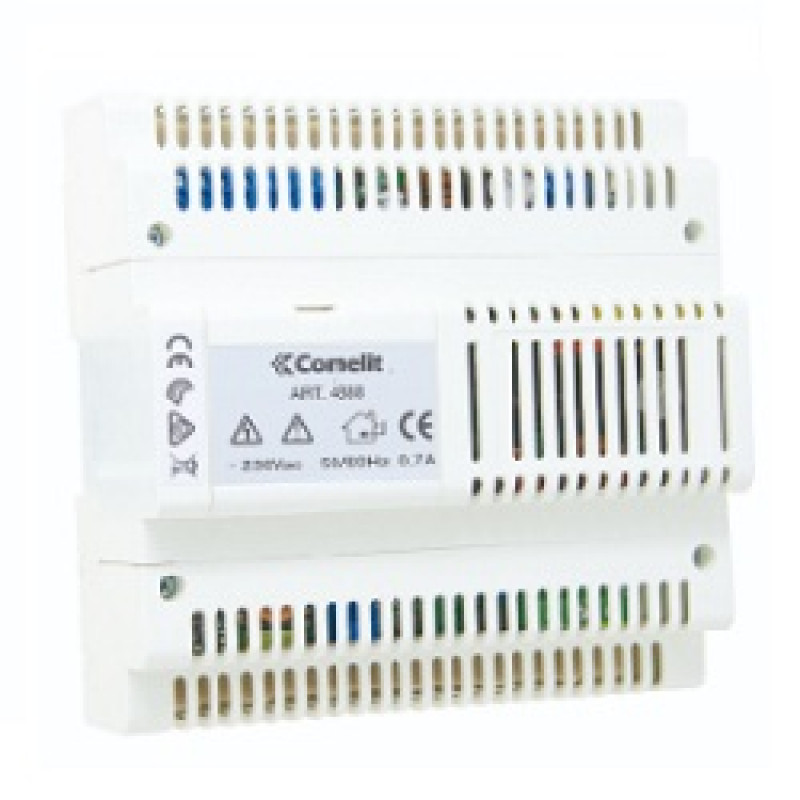

COMELIT (4888), SIMPLEBUS 2 SYSTEM POWER SUPPLY MIXER
- Brand:Comelit
- Product Code:4888
- Availability:Please Call or Email Us to Check Availability
COMELIT (4888), SIMPLEBUS 2 SYSTEM POWER SUPPLY MIXER
The Mixer is contained in a 8 DIN Module box. Powered by 230V mains, it has a dedicated output to power switching device art. 1224C. On input it receives a Simplebus 1 type signal and superimposes the monitor power supply for the riser. Up to 100 pieces of apparatus between entry phones and monitors can be connected, distributed over 4 outputs. Equipped with LEDs signalling any short-circuiting on the lines. Fitted with 4 terminals for line termination art. 1216.
Key Features:
- Product Height (inch): 5.51
- Product Width (inch): 5.51
- Product Depth (inch): 2.64
- Operating Temperature (°F): 41 ÷ 104
- RH max Operating Humidity (%): 25 ÷ 75
- DIN Rail mounted: Yes
- DIN Modules (no.): 8
- Dimensions: 140X140x67 mm (8 DIN modules).
Note: For more details, please refer with our attached datasheet.
