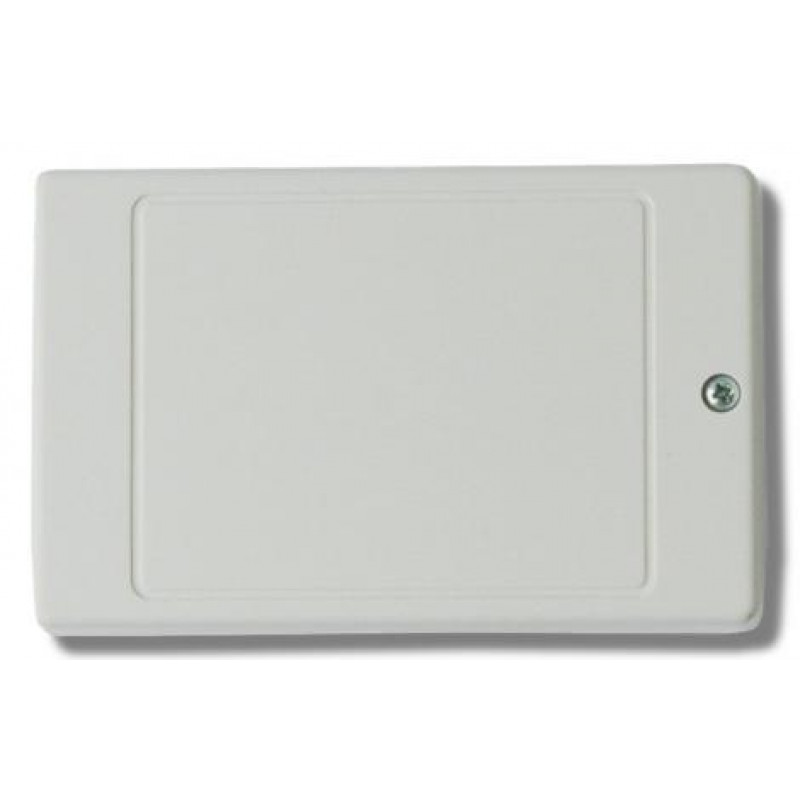

Videx, 894, 4 Way Video Splitter (Composite Video) for Coaxial Video Systems (76J)
- Brand:Videx
- Product Code:894
- Availability:Please Call or Email Us to Check Availability
894, Videx, 4 Way Video Splitter (Composite Video) for Coaxial Video Systems (76J)
4 way video splitter for coaxial video systems. There are 4 outputs to videophones, an input and a loop through to the next splitter. Powered by 12Vdc normally supplied by the videophones.
Specifications:
- Video outputs: 4 1V p-p
- Input voltage: 12Vdc
- Dimensions: 110mm x 70mm x 30mm
- End of line termination required: Yes 75 Ohm resistor between V & M
- Unused outputs require termination: Yes 75 Ohm resistors between Vx & Mx
