DA774/LGE/8NET2CAD,  (495 x 690 x 120mm) Large Enclosure + 12V DC Power Supply

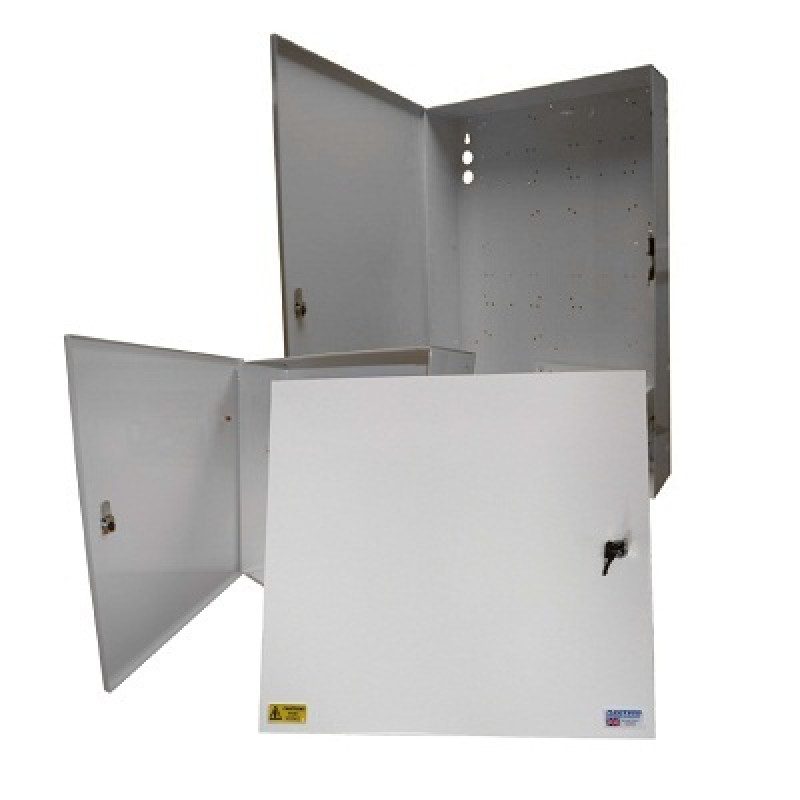

DA774/LGE/8NET2CAD, (495 x 690 x 120mm) Large Enclosure + 12V DC Power Supply

  • Brand:Dantech
  • Product Code:DA774/LGE/8NET2CAD
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Dantech, DA774/LGE/8NET2CAD,  (495 x 690 x 120mm) Large Enclosure + 12V DC Power Supply

Available with 12V 8A DC or 24V 4A DC outputs, this Power Centre is ideal for access control applications. This unit is equipped with low voltage monitoring clean contacts, mains failure clean contacts and battery low voltage disconnect (deep discharge protection).

There are 10 load outputs available for use. All load outputs use automatic self-resetting fuses rated for continuous use and will allow a momentary inrush. Two of the outputs are designed to carry a higher load than the other eight. Please refer to product data sheet for more information.

Removable PSU sub-plate allows replacement without removing the wall mounted enclosure.

These units can also be supplied with a removable sub-plate drilled to a required hole pattern to fit your access control PCB (or other equipment), size permitting, please contact us to find out more.

Key Features:

  • All enclosures will house one VRLA Battery,
  • up to 17Ah (Yuasa "NPC17-12" or equivalent)
  • Removable plate mounted 12V DC (13.7) 8A PSU
  • Mains fail clean contacts
  • Low voltage signalling clean contacts
  • Battery low voltage disconnect
  • Remote switching of output PCB state (Fire enable)
  • Mounting positions to suit all standard size Lenel PCB's
  • Battery backup capable up to 17Ah
  • Individual output LED indication
  • Key-lockable hinged lid with tamperswitch
  • Mild steel wall mountable enclosure
  • White powder coating to RAL9016
  • 20mm & 25mm knock-outs on all sides
  • Can easily be adapted to fit most PCB sizes

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
