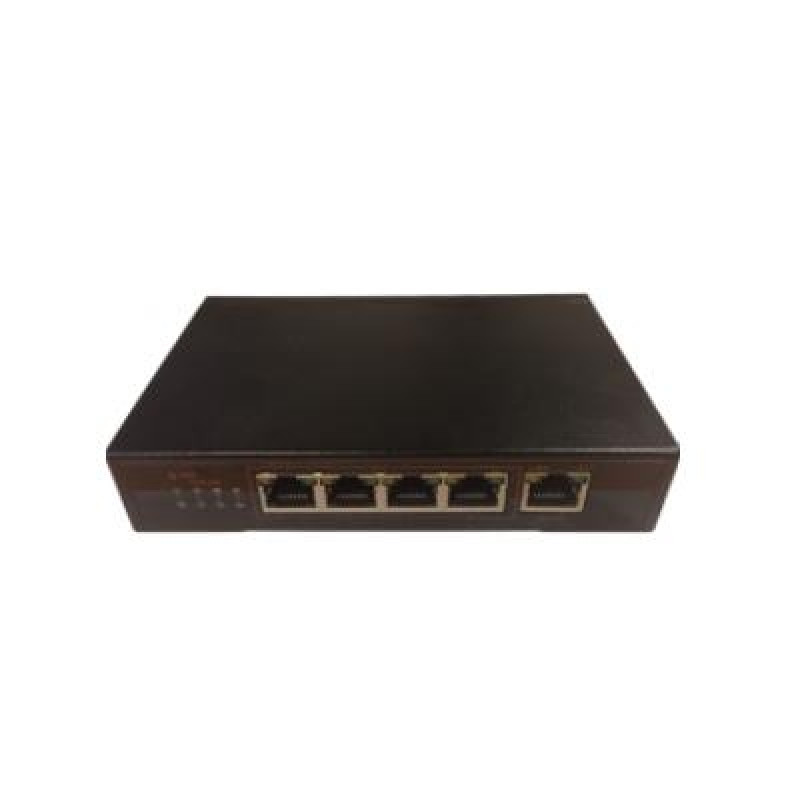

InfinitePlay (Z60DV.2) PoE Switch Power Distribution Unit for Indoor and Outdoor
- Brand:InfinitePlay
- Product Code:Z60DV.2
- Availability:Please Call or Email Us to Check Availability
InfinitePlay (Z60DV.2) PoE Switch Power Distribution Unit for Indoor and Outdoor
PoE Switch power distribution unit with 4 outputs for indoor and outdoor units.
The greatest advantage of this Power over Ethernet (PoE) power supply is the fact it powers and connects a monitor or panel by using a single RJ45 cable. This cuts down the time spent on wiring the system considerably. It has four inputs, meaning it can connect up to four external or internal devices.
The fifth input is for connecting to a router to establish an internet connection. It can be fitted on a DIN rail cabinet (12 DIN modules) and is also known as model Z6001 power distributor.
Key Features:
- Single RJ45 cable connects and powers the device
- Up to 4 devices can be connected
Specifications:
- Supply Voltage: 90V – 260V 50-60Hz
- Input voltage: 48V
- PoE Power: 15,4W for port
- Size: 140x91x28mm
- Operating temperature: 0°C +55°C
For more details, please refer with our attached manual.
