TCS-TX3, Single Sided Transmitter Tower 5-100m (2 x Quad Beams 1 x Anti crawl)
- Brand:Takex
- Product Code:TCS-TX3
- Availability:Please Call or Email Us to Check Availability
TCS-TX3, Single Sided Transmitter Tower 5-100m (2 x Quad Beams 1 x Anti crawl)

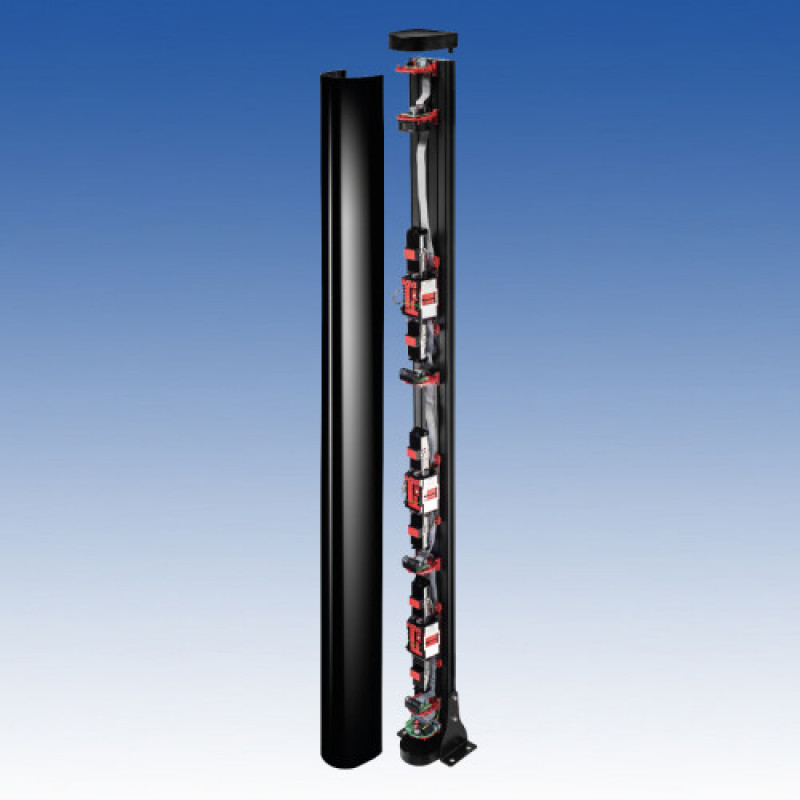

TCS series pre-assembled beam towers are pre-designed and wired 2m single sided towers for the detection of crawling, walking and running intruders up to 100m.
Featuring signal verification and real-time sensitivity adjustment to ensure reliable detection in even the most demanding of weather conditions, the TQ and TC Series were created to be quickly and easily specified and installed; eliminating the need for specialist system design and assembly, offering maximising protection while reducing installation and labour costs on site.
FEATURES
- 2m Single sided tower
- Fully pre-wired and tested
- Quad + Anti-crawl detection system
- Up to 100m detection distance
- Choice of 2 or 3 beams
- Anti-climb pressure top included as standard
- Single connection point
- Optional 12VDC power supply
- Reduced labour cost
| SPECIFICATIONS | |
|---|---|
| Type |
2x Quad Beam + Anti-crawl
|
| Infrared beam |
Double modulation pulsed beam by LED
|
| Detection distance |
Outdoor 330' (100m) or less
|
| Max. arrival distance |
3300' (1000m)
|
| Tower height |
2m
|
| Field of view |
Single sided (180°)
|
| Frequency Selection |
4 channels
|
| Supply voltage |
12VDC
|
| Current consumption |
975mA
|
| Tamper output |
Real time output (N.C.)
· when the lid is removed from the tower · when pressure is applied to the lid |
| Alarm output |
N/A
|
| Response time |
N/A
|
| Environmental output |
N/A
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
