TQD-RX, Double Sided Receiver Tower 5-200m (2 x Quad Beams)
- Brand:Takex
- Product Code:TQD-RX
- Availability:Please Call or Email Us to Check Availability
TQD-RX, Double Sided Receiver Tower 5-200m (2 x Quad Beams)

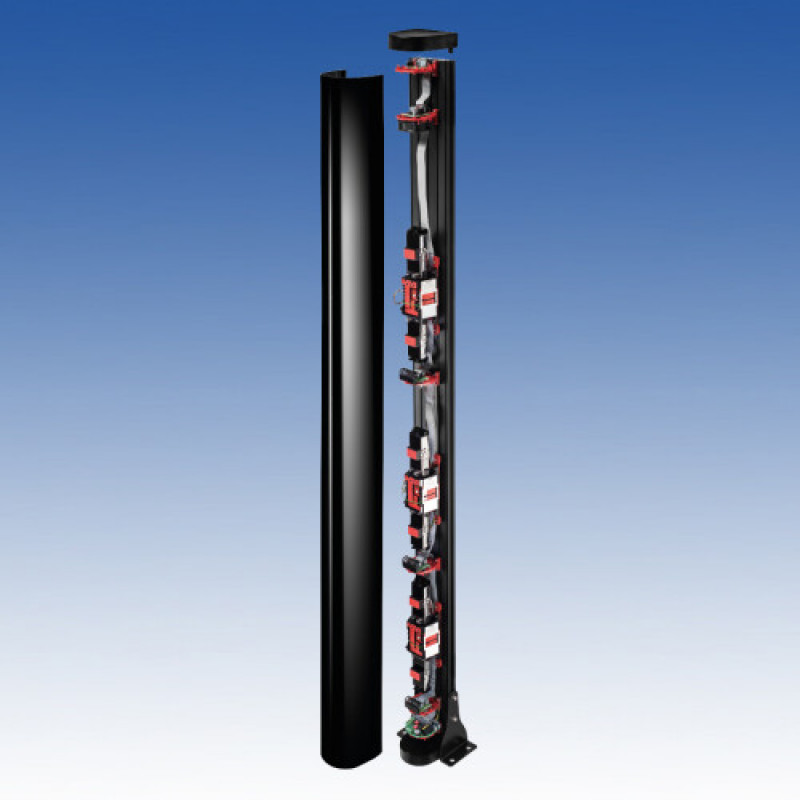

TQD series pre-assembled beam towers are pre-designed and wired 2m double sided towers for the detection of walking and running intruders up to 200m.
Featuring signal verification and real-time sensitivity adjustment to ensure reliable detection in even the most demanding of weather conditions, the TQ and TC Series were created to be quickly and easily specified and installed; eliminating the need for specialist system design and assembly, offering maximising protection while reducing installation and labour costs on site.
FEATURES
- 2m Double sided tower
- Fully pre-wired and tested
- Quad beam detection system
- Up to 200m detection distance
- Choice of 2 or 3 beams
- Single connection point
- Optional 12VDC power supply
| SPECIFICATIONS | |
|---|---|
| Type |
2x Quad Beam
|
| Infrared beam |
Double modulation pulsed beam by LED
|
| Detection distance |
Outdoor 660' (200m) or less
|
| Max. arrival distance |
6600' (2000m)
|
| Tower height |
2m
|
| Field of view |
Double sided (360°)
|
| Response time |
0.05 sec - 0.7 sec
|
| Frequency Selection |
4 channels
|
| Supply voltage |
12VDC
|
| Current consumption |
1,300mA
|
| Alarm output |
N.C. 30V(AC/DC) 1A
|
| Environmental output |
N.C. 30V(AC/DC) 0.5A
|
| Tamper output |
Real time output (N.C.)
· when the lid is removed from the tower |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
