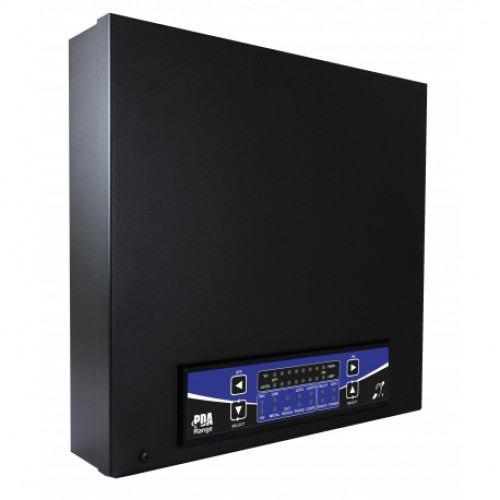

C-TEC, PDA11/DW, 1000m2 Wall-Mounting Phased-Shifting Hearing Loop Amplifier
- Brand:C Tec
- Product Code:PDA11/DW
- Availability:Please Call or Email Us to Check Availability
C-TEC, PDA11/DW, 1000m2 Wall-Mounting Phased-Shifting Hearing Loop Amplifier
1000m2 wall-mounting phased-shifting hearing loop amplifier, 2 x.
Key Fetaures:
- A new wall-mounting 2 x 7.5A phase-array hearing loop amplifier ideal for use in areas up to 1000m2.
- Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation
- 2 x XLR mic/line inputs (selectable) and 1 outreach connector
- Anti-tamper lock function
- Class D output stage for maximum efficiency.
- Superior audio processing and powerful CPU provide life-like speech and first class music reproduction
- Fault relay & LED indicators provide clear indication of operation and fault status
- Industry leading dual action automatic gain control compensates for poor microphone technique
- Line level output for recording or daisy-chaining multiple units to cover larger areas.
Technical Specification:
| Type | Wall-mounting (requires a permanent 5A fused spur connection to Mains). |
| Coverage | 1000m2 approx. |
| Mains supply | 230V 50Hz. |
| Output | 2 x 7.5A loop drive current @ 1 Ohm; Loop output volage 14V. |
| Max battery size and type | n/a. |
| Auxiliary inputs | 2 x XLR mic/line inputs with switchable 12V phantom power (on or off); Outreach and Optical TOS Link connectors. |
| Indicators | VU Meter (shows the amplitude of the audio); HOT! (lit if the output stage is getting hot); FAULT1 / FAULT2 (lit if loop 1 or loop 2 has shut down because of overheating or excessive current; POWER (lit when the amplifier is receiving power). |
| Controls | Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive 1, Loop Drive 2, Phase Shift. |
| Connections | Mic (3-way pluggable); Line In (3-way connectors); Loop (4 way connector); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector); Optical; 230Va.c. fixed Mains connector.. |
| Product dimensions (mm) | 298 (H) x 308 (W) x 74 (D) mm. |
| Construction & finish | Mild steel zintec, 1mm thick, black powder coated |
| IP Rating | IP40. |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
