Videx, 2206N, Bus Exchange for Both Audio and Video VX2200 Systems (180 Units/Riser)

2206N, Videx, Bus Exchange for Both Audio and Video VX2200 Systems (180 Units/Riser)

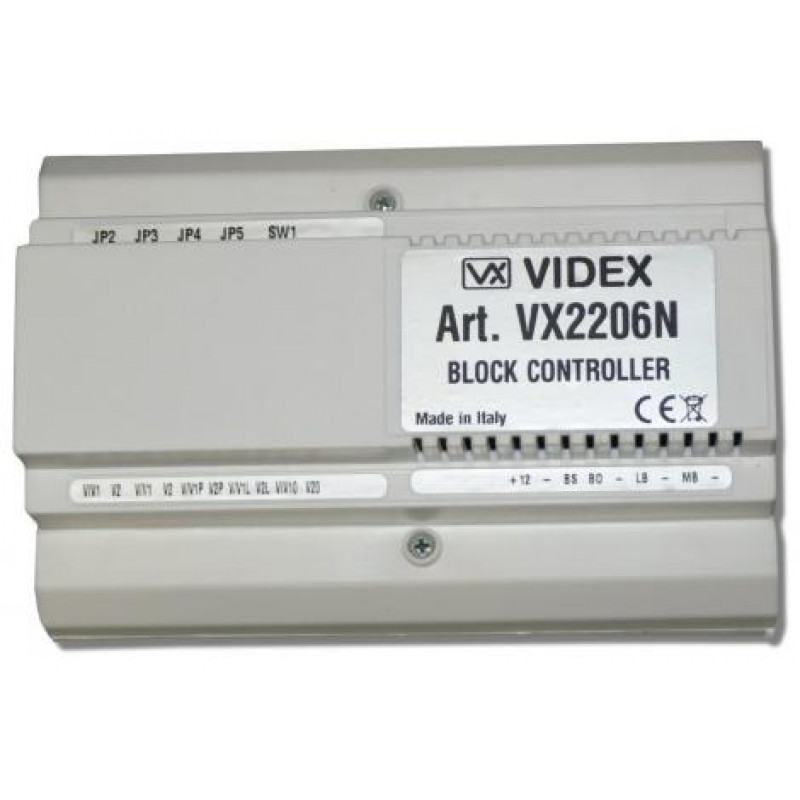

The 2206N is a powerful device which allows the system to be expanded up to 998 apartments. There are two applications in which this unit can be used. The first application is a system with both main entrances and sub entrances/blocks (Main entrances call all apartments on a system and sub/block entrances only call the apartments in their own block). In this application, one 2206N would be required for each block. The second application is a single level system with up to 10 entrances whereby all entrances need to call all apartments. In this application, a 2206Nwould be required for every 180 apartments and could be used to expand the system up to 998 apartments(i.e. 500 apartments would require a minimum of 3x2206N).

• The Art.2206N has been developed from the Art.2206A and 2206V (BUS exchange devices) to give greater system lexibility in one and two level system design and permits far longer cable runs.
• The 2206N can be used to distribute the system BUS or used where the installation is greater than 180 apartments.
• The 2206N allows multiple speech paths on two level systems or on installations with a main digital entrance panel and a number of digitalor functional secondary block or sub entrances with up-to 998 apartments.
• This module can also be used oninstallations where the existing cable cross section is found to be too small.

Specification:

• Supply voltage: 12Vdc
• Video formats supported: Balanced and 1V p-p

For more details, please refer with our attached datasheet.
