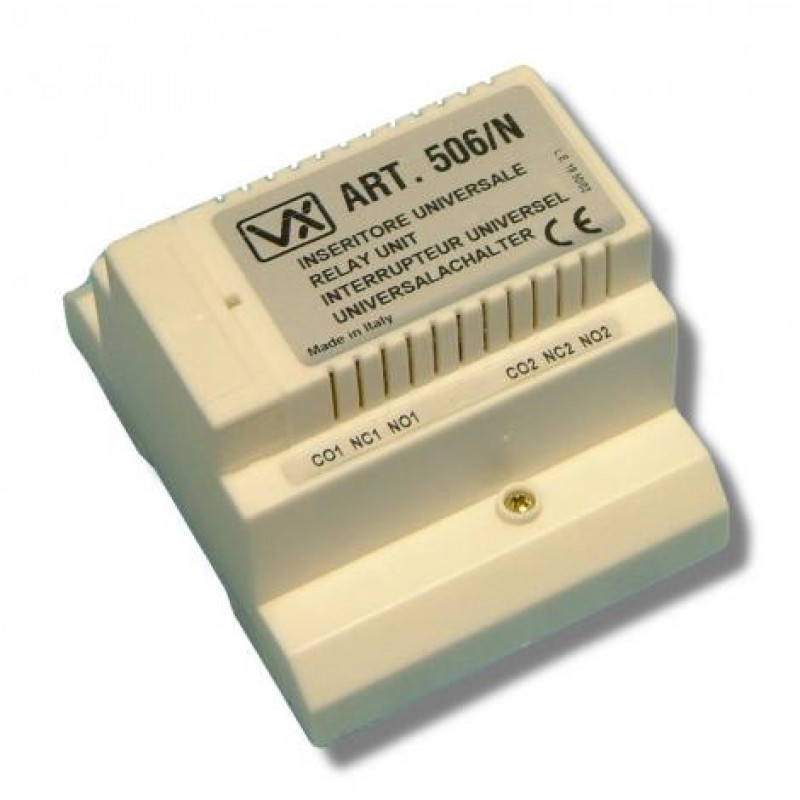

Videx, 506, DIN Boxed Universal Relay 12/24V (23G)
- Brand:Videx
- Product Code:506
- Availability:Please Call or Email Us to Check Availability
506, Videx, DIN Boxed Universal Relay 12/24V (23G)
Boxed 12/24v ac/dc relay. Outputs are 2 x single pole changeover rated at 240v 5 amps. It also includes a low current transistor switched input. This is a universal relay for use in many application and environments.
Specifications:
- Input: 12-24Vac or dc
- Output: Double pole change over relay (C, NO NC contacts 220Vac 5A max.)
- Dimensions: 87.5mm(L) x 105mm(W) x 65mm(D)
- Material: Plastic
- Mounting: Wall or DIN (5 modules A type DIN)
