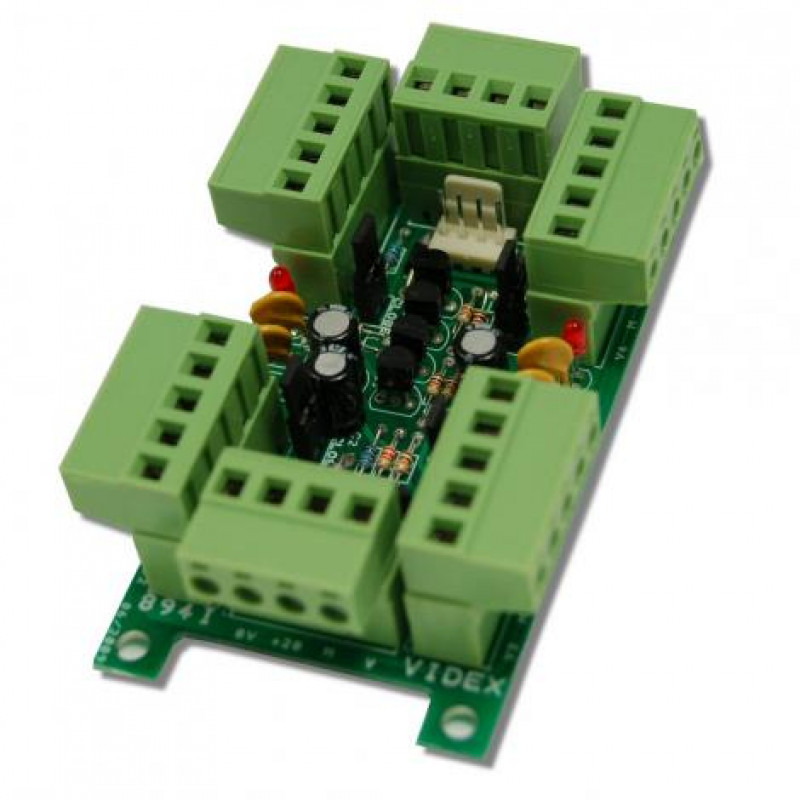

Videx, 894I, Composite Video 4 Way Video Splitter for VX2200 Systems - For Installation in to a Cabinet or Mounted on the 2204N PCB
- Brand:Videx
- Product Code:894I
- Availability:Please Call or Email Us to Check Availability
894I, Videx, Composite Video 4 Way Video Splitter for VX2200 Systems - For Installation in to a Cabinet or Mounted on the 2204N PCB
4 way coax (composite video) video splitter for all coax video systems. Includes terminating jumpers. There are four outputs to videophones, An input and a loop through to the next video splitter. Powered from bus 20Vdc. 20Vdc isolated to protect from shorts in apartments. Normally fitted in a cabinet or mounted on a 2204N PCB
Specifications:
- Video outputs: 4x 1V p-p
- Input voltage: 12Vdc
- End of line termination required: Yes 75 Ohm resistor between V & M
- Unused outputs require termination: Yes 75 Ohm resistors between Vx & Mx
For more details, please refer with our attached datasheet.
