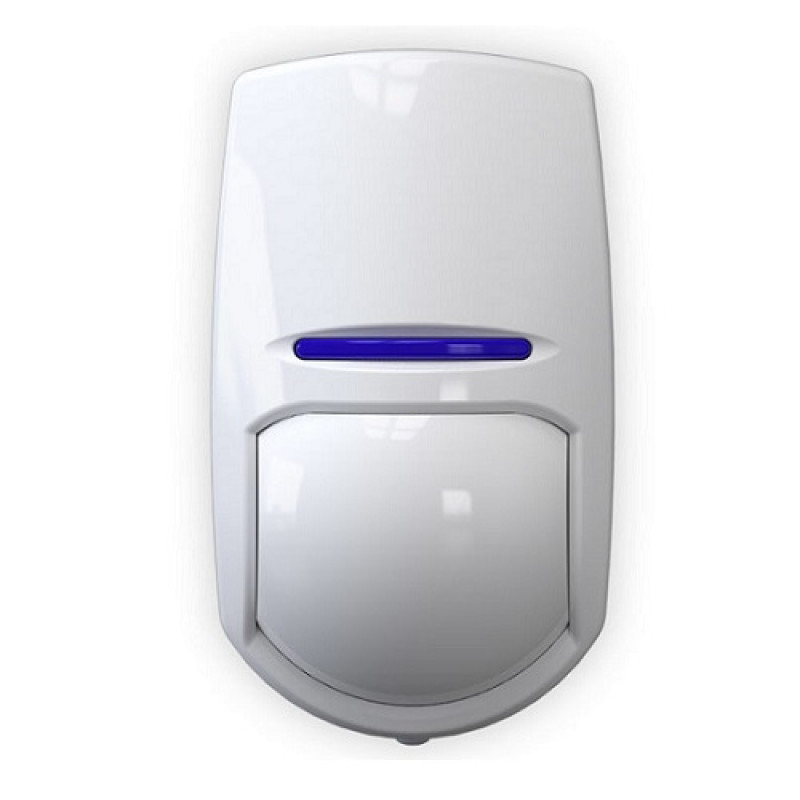

Pyronix (FPKX10DP) Digital 10m Pet Immune Detector

Pyronix (FPKX10DP) Digital 10m Pet Immune Detector

Keep you home protected even if you have pets, the KX10DP's intelligent Pet Immune technology differentiates between your pets and intruders with pet immunity for even larger pets (up to 24kg approximately the size of a Labrador)

Pet Immune / 10m volumetric detector
The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 24kg and 10m coverage range.

Selectable EOL resistors
The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

1. The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

2. Digital temperature compensation digitally adjusts the detectors sensitivity to ensure intruder catch performance is maintained.

3. Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Auto sensitivity feature
Depending on the environment condition, the detector will automatically adjust the sensitivity

Tamper proof brackets
Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional)

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

• 10m pet immune detection up to 24kg animal
• Selectable EOL (End Of Line) resistors
• Blue Wave Technology
• Auto sensitivity feature
• Digital temperature compensation
• Tamper proof brackets included
• Sealed optics
• ABS plastics
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Set sensitivity : Yes (Low)
• Digital temperature compensation : Yes
• DEOL resistor on board : Yes
• Tamper protection : Front and rear

Optical, lens and detection characteristics

• Maximum range : 10m
• Animal immunity : Up to 24kg
• Detection speed : 0.3- 3.0m/s
• Coverage angle : 85 degree
• Detection zones : 52
• Detection planes : 5
• Detection method : Digital quad signal processing

Mounting

• Wall mounted : Bracket included
• Ceiling mounted : Bracket included
• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 2.4m

Environmental and operating features

• Storage temperature : -40°C to +80°C
• Certified operating temperature : -10°C to +40°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Operating voltage : 9-16V DC 13.8V DC typical
• Quiescent current consumption : 13mA @ 12V (Min), 16mA @ 12V (Max)
• Contact Resistance : <10 ohms
• Relay outputs : 50mA 60 VDC, 42 VAC (RMS)
• Tamper switch : 12V 50mA

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-2:2008, EN50131-1:2006+A1:2009, PD6662:2017
• Certification type : IMQ
• Certificate number : CA12.01173
• Environmental class : II
• Security Grade : Grade 2
