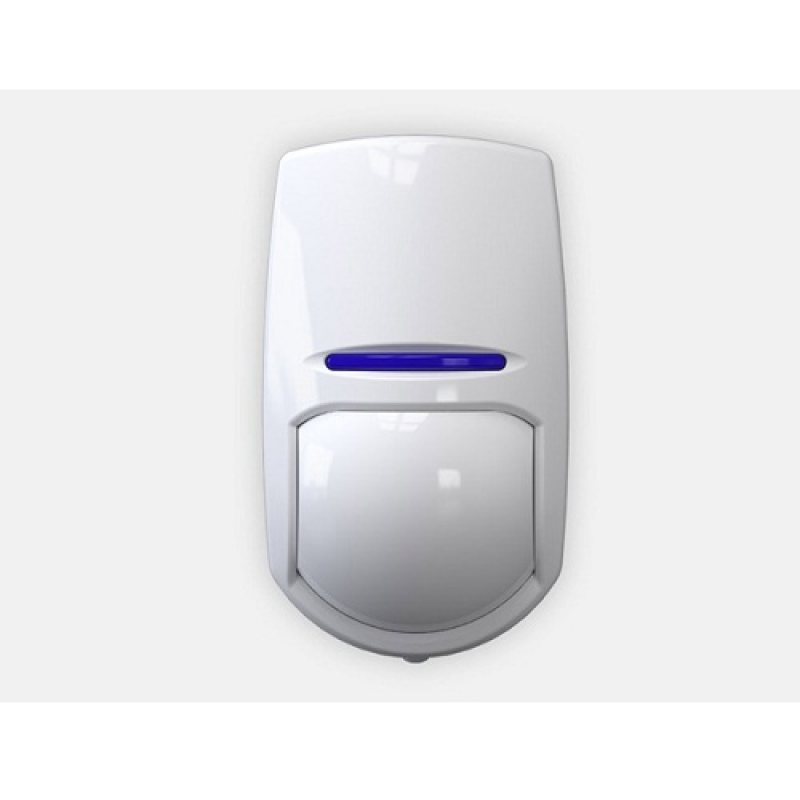

Pyronix (FPKX15DQ) 15m Digital Quad Blue Wave Technology PIR Detector

Pyronix (FPKX15DQ) 15m Digital Quad Blue Wave Technology PIR Detector

  • Brand:Pyronix
  • Product Code:FPKX15DQ
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Pyronix (FPKX15DQ) 15m Digital Quad Blue Wave Technology PIR Detector

With Bluewave technology, and digital temperature compensation the KX15DQ will automatically recognise any environmental changes and adjust accordingly.

15m Volumetric detector
15m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Selectable EOL resistors
The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

1. The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

2. Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Auto sensitivity feature
Depending on the environment condition, the detector will automatically adjust the sensitivity.

Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC).

Tamper proof brackets
Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

  • Dual element pyro-electric sensor
  • Selectable EOL (End Of Line) resistors
  • Blue wave technology
  • Auto sensitivity feature
  • Digital temperature compensation
  • Tamper proof brackets included
  • Sealed optics
  • ABS plastics
  • Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

  • Blue Wave technology : Yes
  • Automatic sensitivity : Yes
  • Set sensitivity : Auto, High or Low
  • Digital temperature compensation : Yes
  • Optical quad : Yes
  • DEOL resistor on board : Yes
  • Tamper protection : Front and rear

Optical, lens and detection characteristics

  • Maximum range : 15m
  • Detection speed : 0.3- 3.0m/s
  • Coverage angle : 85 degree
  • Detection zones : 60
  • Detection planes : 7
  • Protection of area under the detector (creep zone) : Yes
  • White light filter : 6500 Lux
  • Protection : 3 dimensional
  • Lens : Ultraviolet light filter
  • Optics ; Sealed optics
  • Detection method : Digital Quad signal processing

Mounting

  • Wall mounted : Bracket included
  • Ceiling mounted : Bracket included
  • Optimum coverage height : 1.8 - 2.4m
  • Certified mounting height : 2.4m

Environmental and operating features

  • Storage temperature : -40°C to 80°C
  • Certified operating temperature : -10°C to 40°C
  • Nominal operating temperature : -30°C to 70°C
  • Physical dimensions (H x W x D) : 117 x 69 x 50mm
  • Weight : 125g without bracket

Electrical & battery

  • Operating voltage : 9-16V DC 13.8V DC typical
  • Quiescent current consumption : 13mA @ 12V (Min), 16mA @ 12V (Max)
  • Contact Resistance : <10 ohms
  • Relay outputs : 50mA 60 VDC, 42 VAC (RMS)
  • Tamper switch : 12V 50mA

Certifications and warranty

  • Electrical conformity : CE
  • EN Certificate : EN50131-2-2:2008, EN50131-1, PD6662:2010
  • Certification type : IMQ
  • Certificate number : CA12.1172
  • Environmental class : II
  • Warranty : 5 years
  • Security Grade : Grade 2

Optional:

FPKX15ED PIR DUALTECH 15m
