Pyronix (FPINVINCE2-BA) Invincibell E Amber Sounder, Grade 2

Pyronix (FPINVINCE2-BA) Invincibell E Amber Sounder, Grade 2

  • Brand:Pyronix
  • Product Code:FPINVINCE2-BA
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Pyronix (FPINVINCE2-BA) Invincibell E Amber Sounder, Grade 2

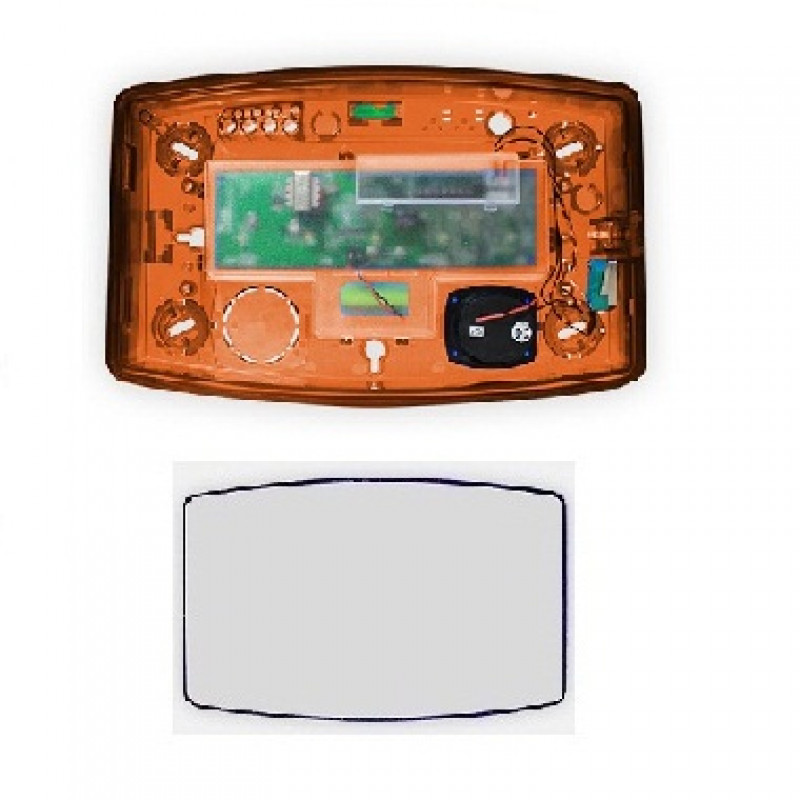

Amber sounder base with pcb module, battery, no cover.

The Invincibell range of external sounders give you the perfect visual deterrent, with its 104db(A) loudness and strobe effect which activates on alarm the Invincibell E will alert neighbour if anyone tries to enter your property.

With front, rear and power cut off tamper protection you know that if anyone does try to disable the sounder you will be alerted. The engineer hold off mode which is activated on the panel will ensure that your don’t get any unwanted alarms while your system is being fitted and serviced.

3 Way tamper action
Activation from front, back, and power supply cut off ensures protection from sabotage attempts. In this situation, the siren will activate independently of the control panel.

Sound Pressure Level 104dBA

Siren cut-off timer
The cut off timer is defaulted to 15 minutes to meet industry regulations.

Revolving guide holes
Unique levelling mechanism including in-built spirit level and revolving guide holes.

Supplied with battery
Complete with a backup battery so that even in the event of an intruder sabotage, the bell box will still operate and protect the property.

Universal triggering inputs
Can be connected to any output on a manufacturers control panel, positive applied, negative applied, positive removed, negative removed.

Remote engineer hold off
It is possible to disable the bell box tamper when a control panel is in the engineers menu.

Key Features:

  • Piezo sounder technology
  • 3 Way tamper action
  • Universal triggering inputs
  • Dual skin 3mm ABS housing
  • IP65 rated
  • Various colour combinations available
  • Engineer hold off
  • Supplied with rechargeable battery
  • Mounted Horizontally or Vertically

Technical Specifications:

Sounders technical characteristics

  • Loudness : 104 dB(A)
  • Engineer hold off : Yes
  • Number of Piezos : 1
  • Flashing LED : Yes
  • Comfort LED : Yes
  • Back-lit : No
  • Tamper protection : Yes
  • Strobe duration and frequency : 10mS, 1Hz
  • Sounder maximum duration : 15 mins
  • SAC (self actuating bell) / SAB (self activating bell) option : Yes
  • Self levelling : Yes

Environmental and operating features

  • Certified operating temperature : -25°C to 60°C
  • Nominal operating temperature : -30°C to 60°C
  • Physical dimensions (H x W x D) : 314.5 x 198.8 x 53.3 mm

Electrical & battery

  • Battery type : NiMH 7.2V, 250mAh
  • Battery life : 2 - 5 years
  • Operating voltage : 9-16V
  • Alarm current : <300mA
  • Quiescent current consumption : <60mA

Certifications and warranty

  • Electrical conformity : CE
  • EN Certificate : EN50131-4:2009 PD6662:2010
  • Certification type : Self Certified
  • Environmental class : IV
  • Warranty : 2 years
  • Security Grade : Grade 2
