Pyronix (FPINVINCX3-BBK) Invincibell X Black Sounder, Grade 3

Pyronix (FPINVINCX3-BBK) Invincibell X Black Sounder, Grade 3

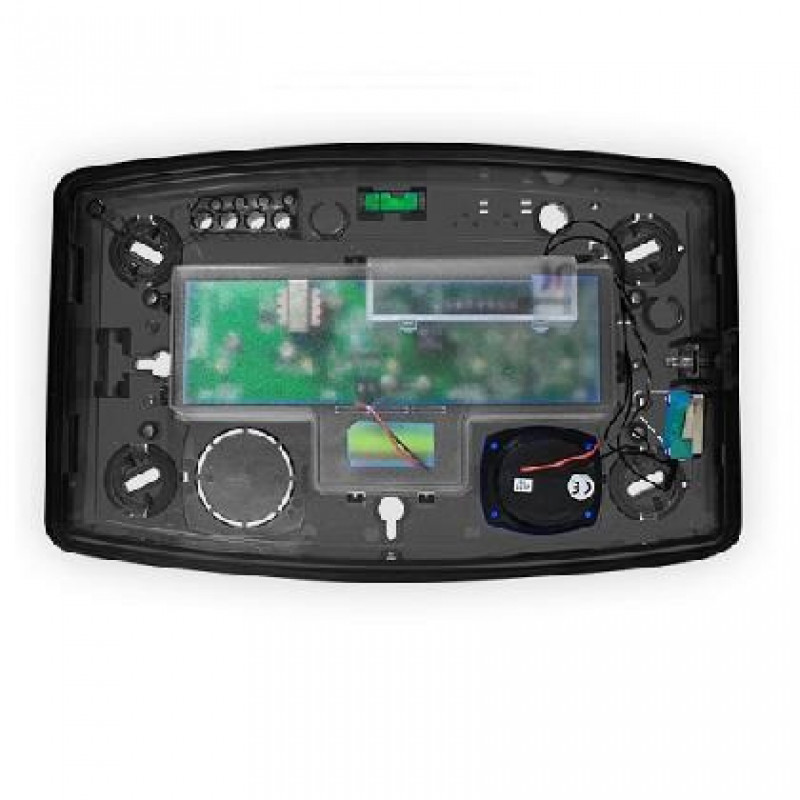

Black sounder base with pcb module, battery, no cover.

The Invincibell X Lightbox is a unique visual deterrent that will slide into the cover and will illuminate the front of the Invincibell X at night to maximize its security impact. In addition to the low light illumination the Invincibell X with light box will strobe from the base and the lightbox when the alarm is activated.

With sealed electronics and enhanced 3 way tamper protection you can be confident that the Invincibell X with Lightbox will be there if you need it.

3 Way tamper action
Activation from front, back, and power supply cut off ensures protection from sabotage attempts. In this situation, the siren will activate independently of the control panel.

Current consumption feature
An incorporated LDR (Light Dependant Resistor) will turn the Lightbox off automatically during daylight hours.

Piezo sounders with high decibel output

Siren cut-off timer
The cut off timer is defaulted to 15 minutes to meet industry regulations.

3mm Poly housing
Enables a panoramic strobe effect illuminating the full bell box

Current consumption feature
An incorporated LDR (Light Dependant Resistor) will turn off the backlight automatically during daylight hours.

Positive/Negative trigger inputs
Can be connected to any output that is positive applied or negative applied on a manufacturer's control panel.

Revolving guide holes
Unique levelling mechanism including in-built spirit level and revolving guide holes.

Supplied with battery
Complete with a backup battery so that even in the event of an intruder sabotage, the bell box will still operate and protect the property.

Universal triggering inputs
Can be connected to any output on a manufacturers control panel, positive applied, negative applied, positive removed, negative removed.

Remote engineer hold off
It is possible to disable the bell box tamper when a control panel is in the engineers menu.

Twin piezo
Twin piezo sounders with high decibel output.

Visual alarm warning feature
The Invincibel X base and the additional Lightbox will strobe when the alarm is activated.

Engineer hold off facility
When first powered with the tamper switch open, the sounder will not activate.

Key Features:

• 3 Way tamper action
• Dual skin 3mm ABS housing
• IP65 rated
• Supplied with rechargeable battery
• Various colour combinations available
• Piezo sounder technology
• Universal triggering inputs
• Full backlit base
• Engineer hold off
• Active self-test for SAB back up battery
• Siren trigger input is continuously monitored for integrity
• Remote engineer hold off input
• Fault relay output

Technical Specifications:

Sounders technical characteristics

• Loudness : 104 dB(A)
• Sound and light indication on alarm : Yes
• Engineer hold off : Yes
• Number of Piezos : 2
• Flashing LED : Yes - If Lightbox fitted this will act as an additional strobe
• Comfort LED : Yes
• Back-lit : Yes
• Tamper protection : Yes
• Strobe duration and frequency : 10mS, 1Hz
• Sounder maximum duration : 15 mins
• Available with or without a lightbox : Yes
• SAC (self actuating bell) / SAB (self activating bell) option : Yes
• Self levelling : Yes

Environmental and operating features

• Certified operating temperature : -25°C to 60°C
• Nominal operating temperature : -30°C to 60°C

Electrical & battery

• Battery type : NiMH 7.2V, 250mAh
• Battery life : 2 - 5 years
• Operating voltage : 9-16V
• Alarm current : 300mA
• Quiescent current consumption : 90mA

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-4:2009 PD6662:2010
• Certification type : Self Certified
• Environmental class : IV
• Warranty : 2 years
• Security Grade : Grade3
