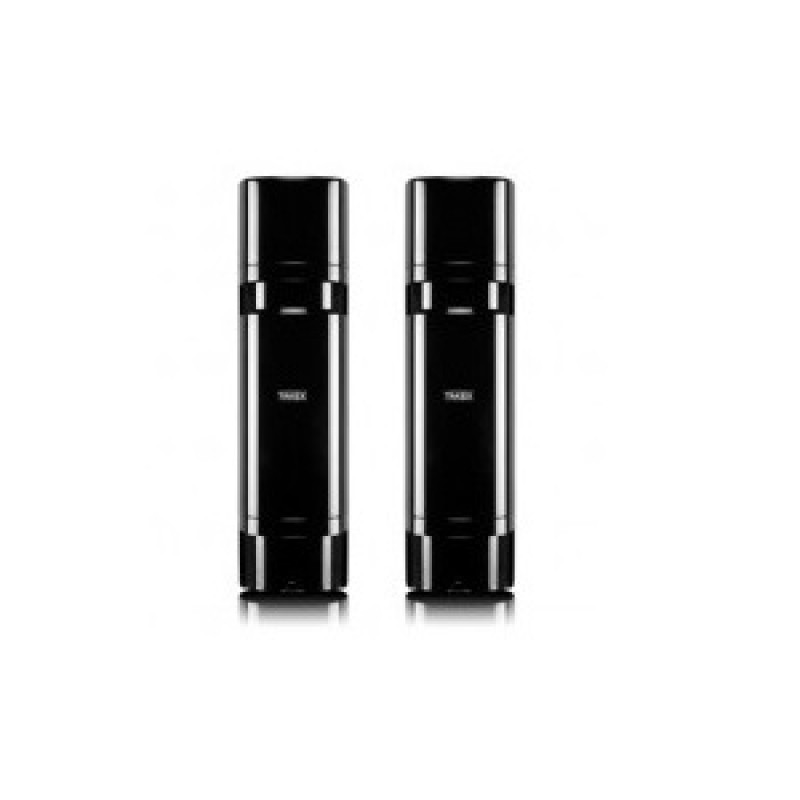

QUAD BEAMS 12/24VDC Up to 100m External / 200m Internal Quad Beam (Single Channel: Ch-3) Includes Pole Clamps PB-100F
- Brand:Takex
- Product Code:PB-100FA
- Availability:Please Call or Email Us to Check Availability
QUAD BEAMS 12/24VDC Up to 100m External / 200m Internal Quad Beam (Single Channel: Ch-3) Includes Pole Clamps PB-100F
Description
The professional choice in outdoor protection, quad beams are synchronised for maximum stability in severe weather conditions for long range perimeter protection.
For distances up to 100m (330ft) outdoor / 200m (660ft) indoor.
note: PB-F series Quad Beams are 'Single Channel' units for simple beam systems. For more complex systems eg. multiple stacked beams or in-line systems use PB-IN-HF series 4-Channel units to avoid 'Crosstalk'.
Features
•Synchronised Quad Beams for maximum stability in severe weather conditions
•Double Modulated beam for unsurpassed immunity to direct and reflected sunlight, vehicle headlights and other light sources.
•Built-in view finder and monitor jack output for easy beam alignment
•180 degree rotating optics for increased installation flexibility
•Automatic Gain Control circuit
Specifications
| PB-100F | |
| Product type | Photoelectric Beam Sensor |
| Detection system | Simultaneous breaking of 4 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 100m (330ft) or less Indoor 200m (660ft) or less |
| Max. beam range | Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less |
| Response time | 50msec. |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | 75mA or less |
| Alarm output | Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less |
| Tamper output | Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
| Functions | Sound check : Audible check of beam level Monitor jack output Frost proof cover |
| Ambient temperature range | -25°C to +55°C (-13°F to +131°F) |
| Mounting positions | Outdoor (Perimeter protection) |
| Wiring | Terminals |
| Weight | Transmitter : 1.3Kg (45.5oz) Receiver : 1.3Kg (45.5oz) |
| Appearance | PC resin (wine red) |
