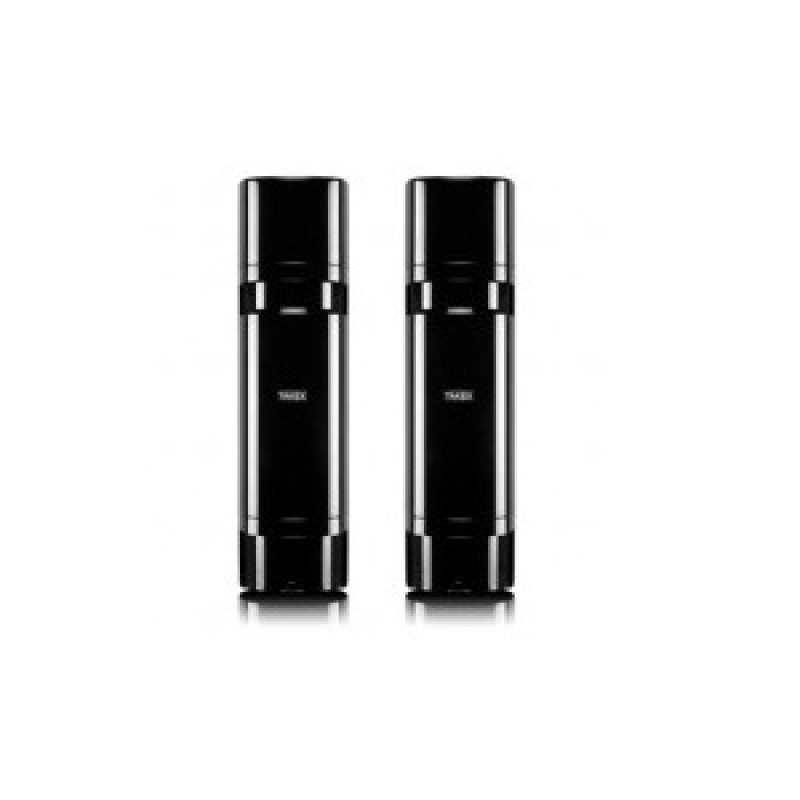

QUAD BEAMS 12/24VDC Up to 200m External / 400m Internal Intelligent Quad Beam (4-Channel) Includes Pole Clamps PB-IN-200HF
- Brand:Takex
- Product Code:PB-IN-200HFA
- Availability:Please Call or Email Us to Check Availability
QUAD BEAMS 12/24VDC Up to 200m External / 400m Internal Intelligent Quad Beam (4-Channel) Includes Pole Clamps PB-IN-200HF
Description
The flagship of the TAKEX range of infrared beams is the PB-IN-HF series. By synchronizing 16 beam paths between Transmitter and Receiver, the PB-IN-HF series ensure maximum stability for Perimeter Protection. Unique Double Modulated beams are combined with a specially designed external light compensation circuit to provide market leading tolerance against direct and reflected sunlight and vehicle headlights. Coupled with channel separation and environmental (anti-fog) circuitry, the PB-IN-HF series has earned worldwide recognition as the standard our rivals aspire to.
For distances up to 50m (165ft) outdoor / 100m (330ft) indoor.
Features
•4 Synchronised High-Power Beams
•Selectable 4-Channel Beam Frequencies
•Double Modulated Beam for unsurpassed Light Immunity
•Monitor Jack for alignment with Multi-Meter
•Audible Alignment Tone
•Environmental (anti-fog) Monitoring Circuit
•Dynamic A.G.C. Circuit
•Frost Resistant Cover
Specifications
| PB-IN-200HF | |
| Product type | Photoelectric Beam Sensor |
| Detection system | Simultaneous breaking of 4 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 200m (660ft) or less Indoor 400m (1320ft) or less |
| Max. beam range | Outdoor 2000m (6600ft) or less Indoor 2000m (6600ft) or less |
| Response time | 50msec. to 700msec. variable (Standard : 50msec.) |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | 85mA or less at protection |
| Alarm output | Dry contact relay output 1c Reset : Interruption time + off delay Contact capacity : 30V AC/DC, 1A or less |
| Environmental output | Dry contact relay output 1a or 1b (selectable) Action : Output when weather conditions worsen Contact capacity : 30V AC/DC, 1A or less |
| Tamper output | Dry contact relay 1b Action : Activated when cover is detached Contact capacity : 30V AC/DC, 1A or less |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
| Functions | Modulated beam frequency selection (4-Channel) Environmental module Beam power selection Alarm memory indication Programmed AGC Auto-gain lock function Sound check : Audible check of beam level Monitor jack output Frost proof cover |
| Ambient temperature range | -35°C to +66°C (-31°F to +151°F) |
| Mounting positions | Outdoor (Perimeter protection) |
| Wiring | Terminals |
| Weight | Transmitter : 1200g (42oz) Receiver : 1300g (45.5oz) |
| Appearance | PC resin (wine red) |
