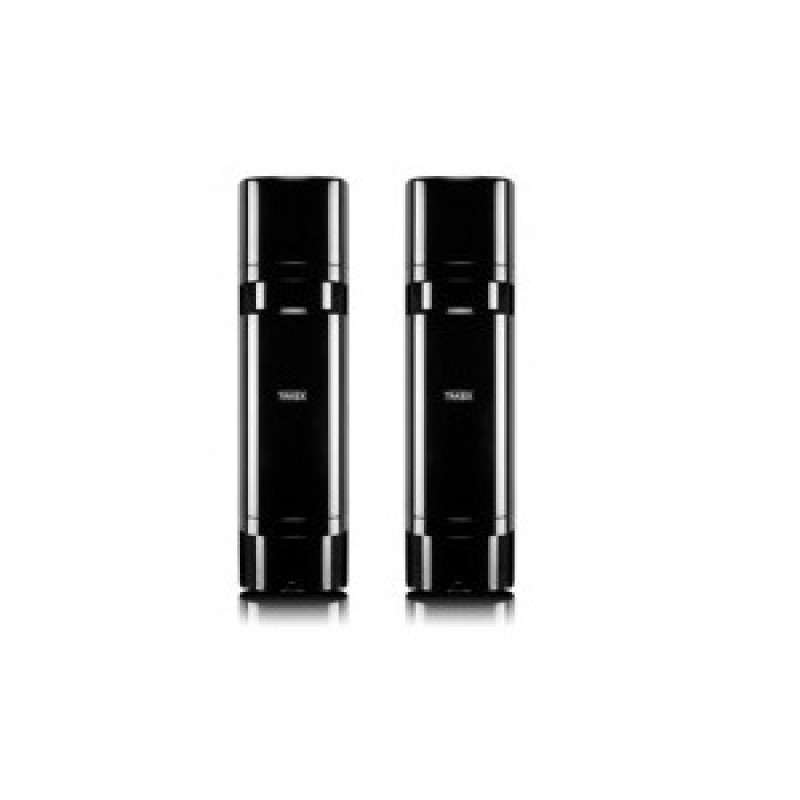

TAKEX (PB-100FA) Up to 100m Outdoor / 200m Indoor, Single Channel
- Brand:Takex
- Product Code:PB-100FA
- Availability:Please Call or Email Us to Check Availability
TAKEX (PB-100FA) Up to 100m Outdoor / 200m Indoor, Single Channel
The professional choice in outdoor protection, our Quad Beam detectors synchronise sixteen beam paths for maximum stability in severe weather conditions, perfect for long range perimeter intruder detection.
- 4 x synchronised high power beams
- double modulation for unsurpassed light immunity
- auto-gain control (AGC)
- 50,000 lux sunlight immunity
- IP55 housing
| SPECIFICATIONS | |
|---|---|
| Type |
Quad Beam
|
| Detection system |
Near infrared beam interruption system
(4 beam simultaneous interruption) |
| Infrared beam |
Double modulation pulsed beams by LED
|
| Detection distance |
Outdoor 330’ (100m) or less
|
| Max. arrival distance |
3300’ (1000m)
|
| Frequency Selection |
Single Channel
|
| Response time |
50msec. to 700msec. variable (Standard: 50msec.)
|
| Supply voltage |
12V to 30V DC (non-polarity)
|
| Current consumption |
70mA or less at protection
(max. 105mA or less) |
| Alarm output |
Dry contact relay: NO or NC (selectable)
Reset: Interruption time + off-delay (approx.1.5sec) Contact capacity: 30V (AC/DC) 1A or less |
| Tamper output |
Dry contact: NC
Contact operation: Output when cover is detached Contact capacity: 30V (AC/DC) 0.1A or less |
| LED indicator |
Red LED (Receiver)
ON : when an alarm is initiated. ON : when beam is attenuated. |
| Functions |
Tone indicator, Alarm memory indication, Programmed AGC, Auto-gain lock, Monitor jack, Target color
|
| Adjustment |
Horizontal: ±90°
Vertical: ±10° |
| Mounting position |
Outdoor
|
| Wiring |
Terminals
|
| Weight |
Transmitter: 42oz (1,200g)
Receiver: 45.5oz (1,300g) |
| Appearance |
Resin (wine red)
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-31°F to +151°F (-35°C to +66°C)
|
| IP Rating |
IP55
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
