TAKEX (PB-200HFA-KH), Up to 200m Outdoor / 400m Indoor, 4-Channel Quad
- Brand:Takex
- Product Code:PB-200HFA-KH
- Availability:Please Call or Email Us to Check Availability
TAKEX (PB-200HFA-KH), Up to 200m Outdoor / 400m Indoor, 4-Channel Quad

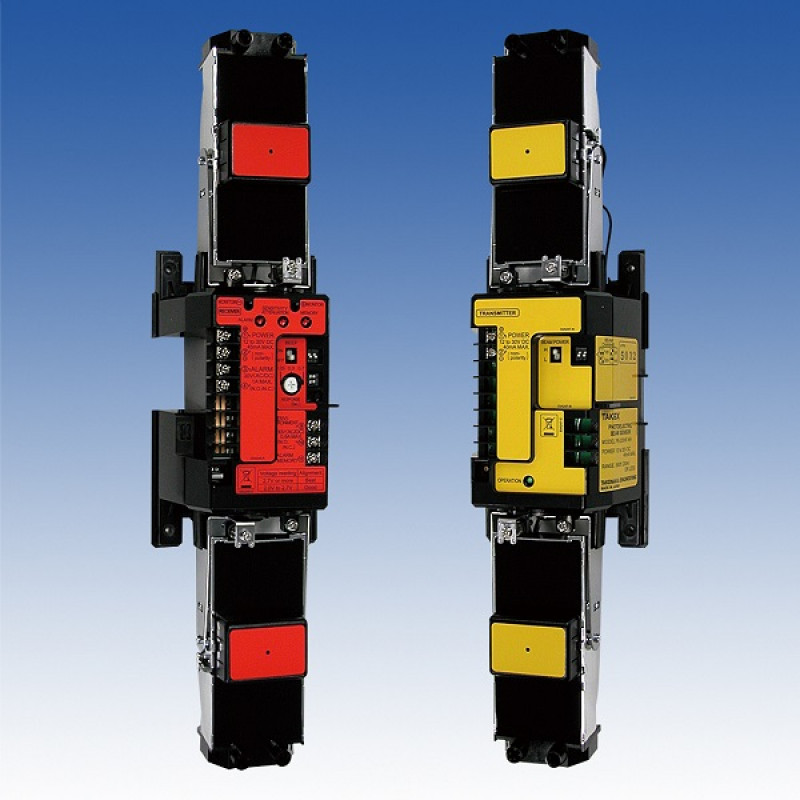

PB-HF-KH Intelligent Quad Beams are designed specifically for use in our TA Series Beam Towers.
Unique Quad beams are synchronised to maintain range and stability in severe weather, while rejecting ‘nuisance-alarms’ caused by birds, animals, or blown-litter.
Supplied with PTKH ‘Quick-fix’ mounting brackets for fast, trouble-free assembly, the beam units locate in vertical slide-channels in the TA tower spine, allowing easy and precise height adjustment.
- 4 x Synchronised high power beams
- Specifically designed for use in TA series Tower Enclosures
- Double coated electronics for demanding environments
- Supplied with ’Quick fix’ mounting brackets for easy adjustment
- 4 x Selectable beam channels to prevent crosstalk
- Environmental monitoring circuit
- Dynamic auto-gain lock (AGL)
- Vivid internal body stickers aid beam alignment procedure
- Double modulation for unsurpassed light immunity
- Auto-gain control (AGC)
- 50,000 lux sunlight immunity
| SPECIFICATIONS | |
|---|---|
| Type |
Quad Beam
|
| Detection distance |
660ft. (200m) or less
|
| Max. arrival distance |
6600ft. (2000m)
(tenfold margin distance) |
| Infrared beam |
LED (pulsed beam by LED)
Double modulation |
| Frequency Selection |
4 Channels
|
| Detection system |
Photoelectric beam
|
| Response time |
0.05sec. to 0.7sec. (Variable at pot)
|
| Alarm output |
Dry contact relay output N.O. / N.C.
Contact action : Interruption time + delay time (approx. 2sec.) Contact capacity : 30V (AC/DC) 1A |
| Environmental output |
Dry contact relay output N.O. / N.C.
Contact capacity : 30V (AC/DC) 0.5A |
| Supply voltage |
12 to 30V DC
|
| Current consumption |
When alarmed 85mA or less
・Transmitter : 40mA or less ・Receiver : 45mA or less When adjusted 120mA or less |
| Functions |
Alignment tone switch, Attenuation LED, Monitor jack, Alarm memory function Four channel frequency selection. Environmental check, Automatic gain control (AGC) circuit
|
| Mounting position |
Inside TA series Beam Towers
|
| Weight |
Transmitter 10.6oz (300g) Receiver 14.1oz (400g)
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| IP Rating |
N/A
|
For more details on this product range, including part numbers, please refer to the manual or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
