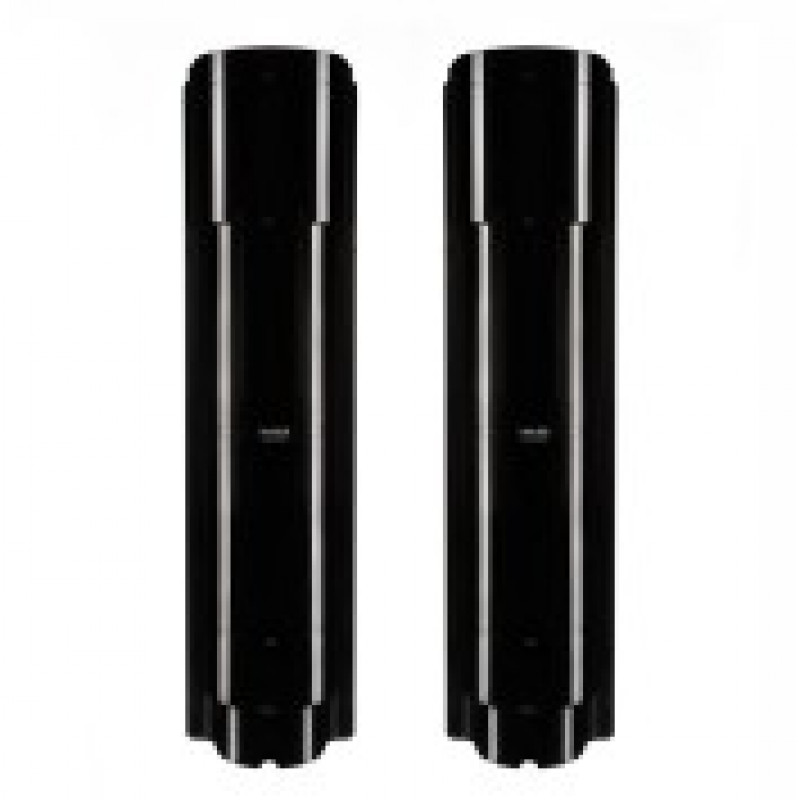

Takex PXB-50HF Quad Photoelectric Beam
- Brand:Takex
- Product Code:PXB-50HF
- Availability:Please Call or Email to Checkout
Takex PXB-50HF Quad Photoelectric Beam
Description
When there is no room for compromise, professional installers and specifiers can rely on the enhanced features of the new PXB Quad Beam range.
For distances up to 50m (165ft) outdoor / 100m (330ft) indoor.
Features
•4 Synchronised High-Power Beams
•Selectable 4-Channel Beam Frequencies
•Double Modulated Beam for unsurpassed Light Immunity
•Wide Beam Pitch minimises false alarms from Birds and Falling Leaves
•±20° Vertical Adjustment for increased installation flexibility
•Vivid internal colour aids Beam alignment procedure
•Lightning and Surge Protection up to 15kV
•Environmental (anti-fog) Monitoring Circuit
•Dynamic A.G.C. Circuit
•Frost Resistant Cover
Specifications
| PXB-50HF | |
| Product type | Photoelectric Beam Sensor |
| Detection system | Simultaneous breaking of 4 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 50m (165ft) or less Indoor 100m (330ft) or less |
| Max. beam range | Outdoor 500m (1650ft) or less Indoor 500m (1650ft) or less |
| Response time | 50msec. to 700msec. variable (Standard : 50msec.) |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | 30mA or less |
| Alarm output | Dry contact relay output form C Action : Interruption time (min 2sec.) Contact capacity : 30V AC/DC, 1A (resistive load) Protective resistor |
| Environmental output | Dry contact relay output form C Action : Output when weather conditions worsen Contact capacity : 30V AC/DC, 1A (resistive load) Protective resistor |
| Tamper output | Dry contact relay (N.C.) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 1A (resistive load) Protective resistor |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
| Functions | Modulated beam frequency selection (4-Channel) Tone indicator Environmental module Beam power selection Transmitting power adjustment Alarm memory indication Programmed AGC Auto-gain lock function Monitor jack Tamper Response time adjustment Upper / Lower beam switch Frost proof cover |
| Ambient temperature range | -35°C to +66°C (-31°F to +151°F) |
| Mounting positions | Outdoor (Perimeter protection) |
| Wiring | Terminals |
| Weight | Transmitter : 1400g (49oz) Receiver : 1470g (51.5oz) |
| Appearance | PC resin (wine red) |
