INTERNAL REFLECTOR BEAMS 12VDC, 12/24VDC Reflector Beam With Reflector, Internal Use Only. Range Up To 5m. 12/24VDC PR-5B
Description

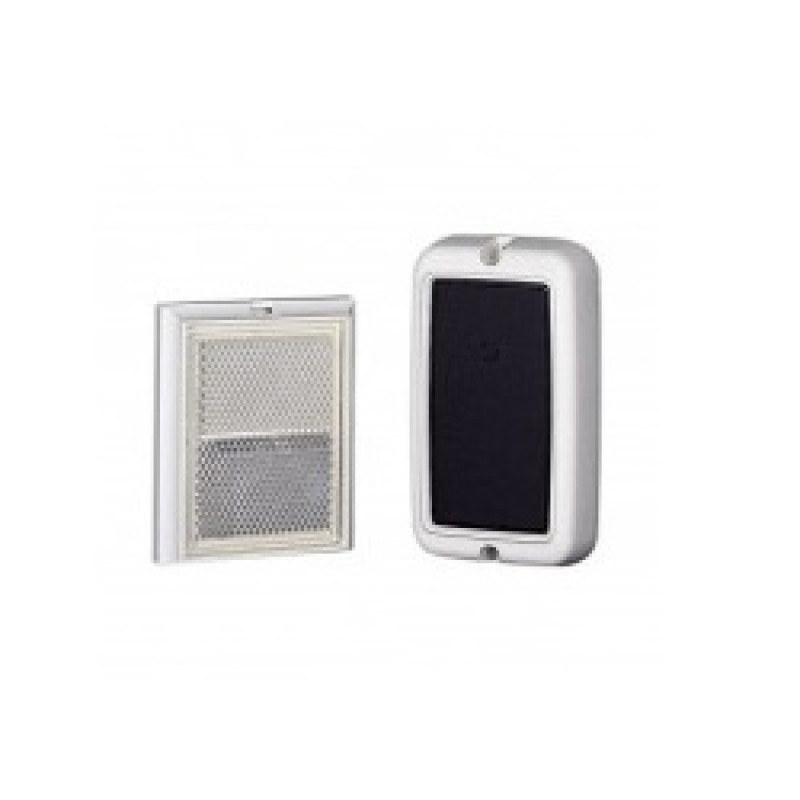

The TAKEX indoor Reflector Beam series is designed for applications where a \'beam-break\' is desirable, but running wire to both ends in impractical. Three different models offer the same point-to-point protection as standard photoelectric beams. The PR-5B is a pocket calculator sized beam designed for unobtrusive protection.
For distances up to 5m (16.5ft) indoor.
Features
•Cable only to one end: for applications where a beam break is desirable but wiring to both ends is impractical
•Ideal for short distance protection across entrances and exits, corridors and staircases
•Compact design for unobtrusive protection
•Simple terminal arrangement for easy installation
Specifications
PR-5B | |
Protection distance | 5m (16.5ft) or less |
Light source | Infrared light emitting diode |
Response time | 50msec. or more |
Alarm Output | Dry contact relay output S.P.D.T. form C Contact capacity: AC/DC30V, 0.5A or less |
Supply voltage | 10.5V to 26VDC (non-polarity) |
Current consumption | 37mA (at 12VDC) |
Ambient Temperature range | -20°C to +50°C (-4°F to +122°F) |
Mounting position | Indoor - entrance, exit, window, passageway |
Weight | Sensor: 90g (3.2oz) Reflector: 50g (1.8oz) |
Appearance | ABS Resin (off-white) |
