PR-30BE Reflector Beam: Up to 30m (100ft) Outdoor / 40m (135ft) Indoor uses ToF technology
- Brand:Takex
- Product Code:PR-30BE
- Availability:Please Call or Email Us to Check Availability
Your shopping cart is empty!

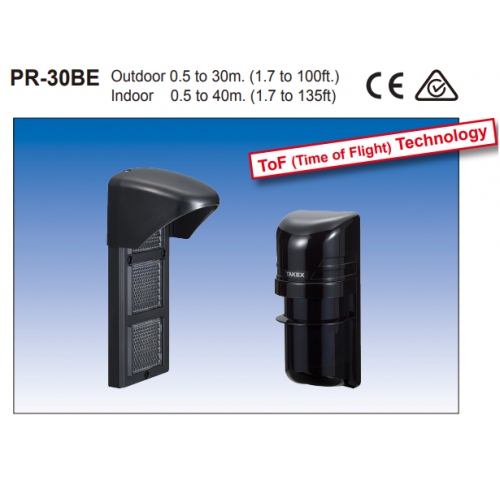

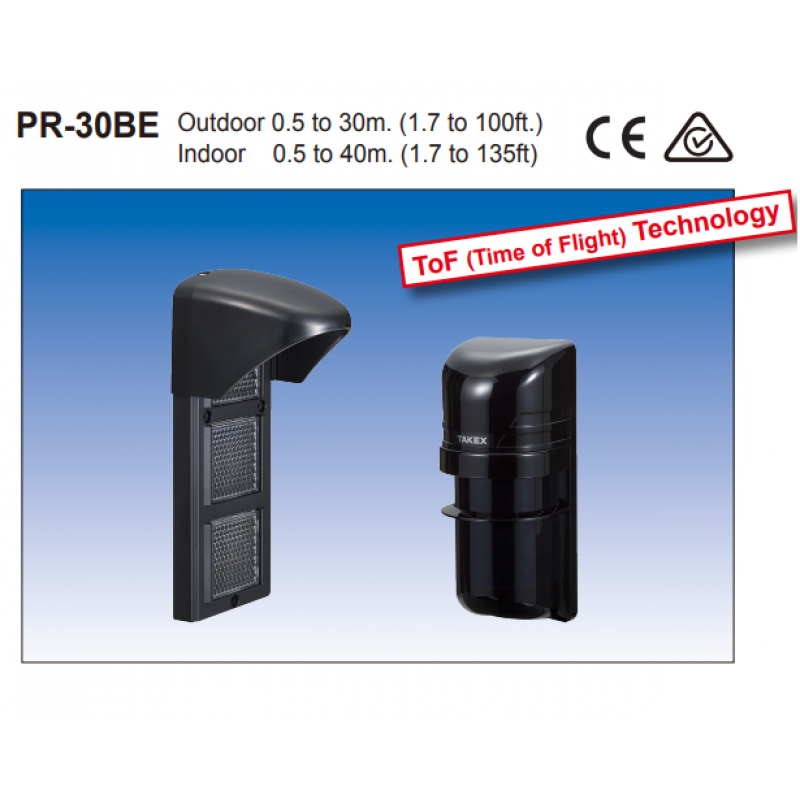

TAKEX, PR-30BE Reflector Beam: Up to 30m (100ft) Outdoor / 40m (135ft) Indoor uses Time of Flight technology
The newly developed PR-30BE uses Time of Flight technology to provide secure outdoor detection up to 30m (100ft), regardless of environment. It's one-sided wiring design makes it ideal for applications where a beam-break is desirable but running cable to both ends is impractical. A convenient way to monitor entrances, gateways, and driveways - for general monitoring and lighting control.
Specifications:
Model | PR-30BE |
Detection system | Near infrared beam interruption system (reflective) |
Protection distance | Outdoor 0.5-30m (1.7-100ft) or less Indoor 0.5-40m (1.7-135ft) or less |
Supply voltage | 10.5V to 30VDC (Non-polarity) (Class 2 poered device) |
Current consumption | 200mA or less 160mA or less (12VDC) 80mA or less (24VDC) |
Alarm output | Dry contact relay NO/NC Contact capacity: 30V (AC/DC) 0.25A or less Relay operation: Interruption time (minimum 2 secs.) |
Environmental output | Dry contact relay NO/NC Contact capacity: 30V (AC/DC) 0.25A or less |
Tamper output | Dry contact relay N/C Action: Activated when cover is detached Contact capacity : 30V AC/DC 0.25A or less |
Response Time | 0.05 / 0.1 / 0.25 / 0.5 sec. |
Alarm LED | Red LED ON: when an alarm is initiated. |
Sensitivity attenuation / Environment LED | Red LED with cover removed (alignment process): lights when beam is attenuated with cover attached: lights when weather conditions worsen |
Functions | Monitor output Response time adjustment |
Ambient temperature range | -25°C to +60°C (-13°F to +140°F) |
Mounting positions | Outdoor / Indoor |
Wiring | Terminals |
Weight | Sensor: 370g (13oz) Reflector : 190g (6.7oz) |
Appearance | Sensor: Resin (wine red) Reflector : Resin (clear / black) |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
