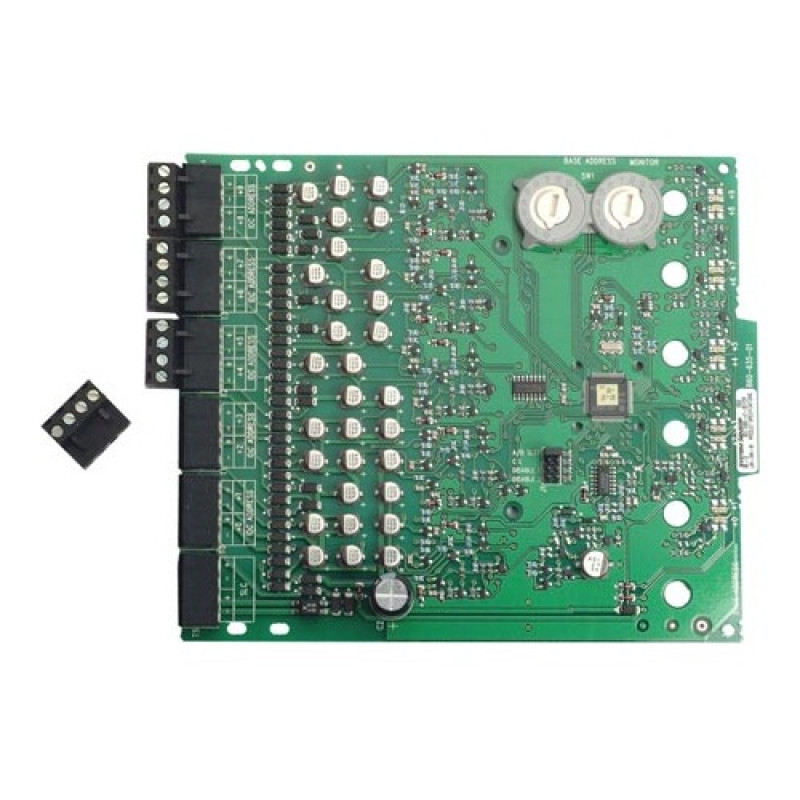

Honeywell (MI-IM10-S2I) Ten Input Monitor Module

Honeywell (MI-IM10-S2I) Ten Input Monitor Module

Ten input monitor module to provide an interface to a normally open contact devices such as plant outputs or flow switches. Requires back box 797-065.

The easy to install multiple input and output modules are designed for use in applications where numerous single modules are required. The monitor and control modules can be used to supervise and activate sounders, strobes, door closers, break glass call points, waterflow switches and other ancillary devices. For retrofit applications the conventional zone interface module is used to monitor existing zones of conventional two-wire detectors. Each module has its own address, set using rotary decade switches; unused addresses can be disabled.

The IM-10 provides an interface with normally open contact devices. The first address is set from 01 to 90; the other modules are automatically assigned the next nine addresses; up to four unused addresses can be disabled. The supervised state: normal, open circuit fault or short circuit alarm is sent back to the control panel.

Key Features:

• Individual LED indicators
• Unused addresses may be disabled
• Rotary address switches
• Class A or B operation
• Removable plug–in terminal blocks

For more details, please refer with our attached datasheet.
