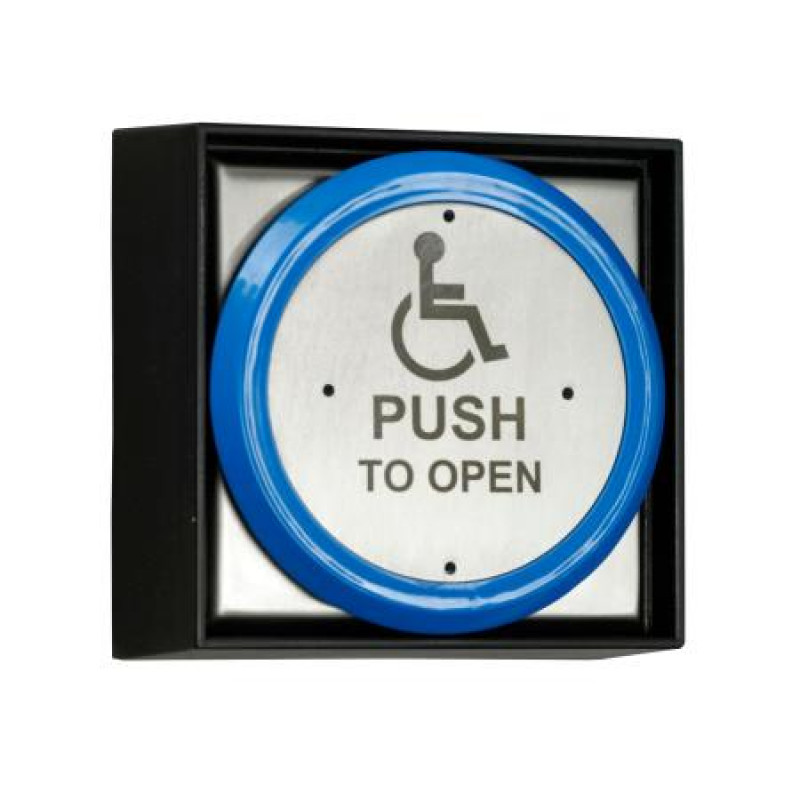

WL-EBLPP02/BK, Stainless Steel Push Plate DDA Button (incl. Radio transmitter)

WL-EBLPP02/BK, Radio transmitter fitted in a DDA Stainless Steel product (see EBLPP02 product for product details and sizes) surface mounted, includes PBB03/BK back box with security screws. Greater than 1m operations. IP55 (Push to Open) - Includes single channel 12vdc receiver (range is limited and may change dependant on installation position) Button Size 129H x 129W x 54D Receiver Size 40h x 85w x 22d (All mm)

Technical specifications

BUTTON

• Contacts : Double pole NONC contact
• Output : 4 AMP contact @ 30 V ACDC
• Wear resistant legend
• Security screws (Allen key type)
• Voltage free contacts

RECEIVER

• Internal use only / entry level
• Power input: 12VDC
• Operates on 433Mhz
• Relay 10A - 120VAC / 20A - 14VDC
• Jumper in position - Toggled

Features:

BUTTON

• Momentary switch
• Can be surface or flush fitting
• Easy clean surface. Ideal for general/sensitive areas
• Screw footprint for flush fitting onto standard back box

RECEIVER

• Durable plastic
• Relay contacts can be toggled
• Programmable remote
• Supplied with 27A type battery

For more details, please refer with our attached datasheet.
