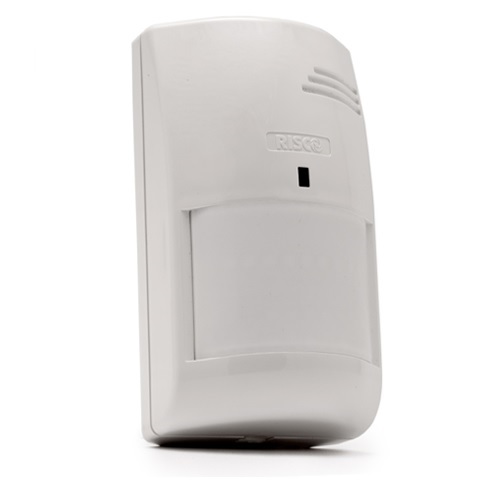

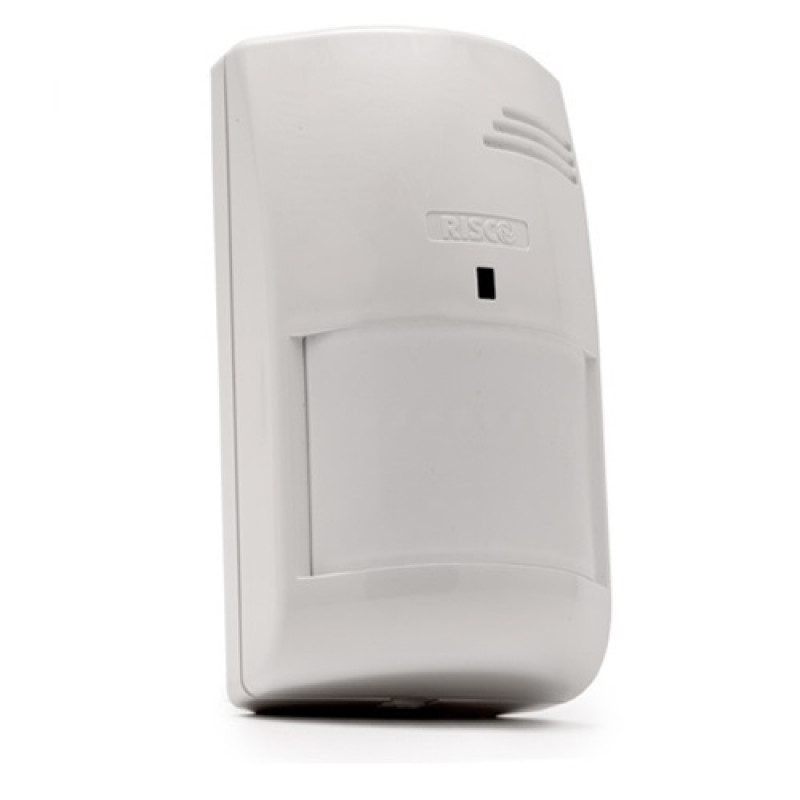

RISCO (RK415PR0000A) DigiSense Digital 15m PIR Detector, Grade 2
- Brand:Risco
- Product Code:RK415PR0000A
- Availability:Please Call or Email to Checkout
RISCO (RK415PR0000A) DigiSense Digital 15m PIR Detector, Grade 2
DigiSense™ is the ideal choice for both commercial and residential installations. Based on RISCO Group's advanced detection technologies, DigiSense™ is designed to assure superior catch performance and false alarm immunity.
Due to their identical and compact housing, the installer can mix and match the various technologies of DigiSense™ detectors in one installation while maintaining the same overall look.
Key Features:
- 12m (40’) for pet friendly models
- Microprocessor-based Digital Signal Processing
- Built-in EOL resistors
- True Temperature Compensation
- Ample wiring space for easy installation
- Free swivel provided with PIR & Quad models
- Variable Pet Threshold (VPT™) in Pet Friendly models
- DT models include Tri-colour LED for easy walk test and anti-fluorescent interference signal processing
- Optional corridor and curtain lenses
Technical Specifications:
- EN50131 Security Grade 2: Relevant for all DigiSense models
- Coverage Range: 12m x 12m (40’ x 40’) for DT Pet and PIR Pet models
- Installation height: 2.4m (7’10”) for DT Pet and PIR Pet models, 2-2.7m (6’7”-9’) for DT & DT QUAD, DT “OR” Logic and PIR and Quad models
- Detection Logic: MW and PIR for DT &DT QUAD and DT Pet models, PIR for PIR & QUAD and PIR Pet and Selectable: MW or PIR , MW and PIR for DT “OR” Logic
- Creep Zone: Not included in PIR & QUAD and PIR Pet versions
- Anti-masking: in DT “OR” Logic model, using MW Channel
- Pet Friendly with VPT: In DT Pet(34kg/ 35lb) and PIR Pet (32kg/ 70lb)
- Swivel: Not applicable for DT Pet and PIR Pet models
- Microprocessor based Digital Signal Processing: Not included in PIR & QUAD
- Built-in EOL Resistors: Double EOL for DT and DT QUAD, DT Pet, PIR & Quad, Triple EOL for DT “OR” Logic, N/A in PIR Pet model
- Anti-fluorescent interface signal processing: Not included in PIR & QUAD, PIR Pet models
- Optional Corridor and Curtain lenses: N/A in DT Pet and PIR pet models
- Operating Voltage: 9 to 16 VDC in all models
- Optical Filtering: White light protection, pigmented lens
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 106 x 60 x 47mm (4.17” x 2.36” x 1.85”)
For more details, please refer with our attached datasheet.
