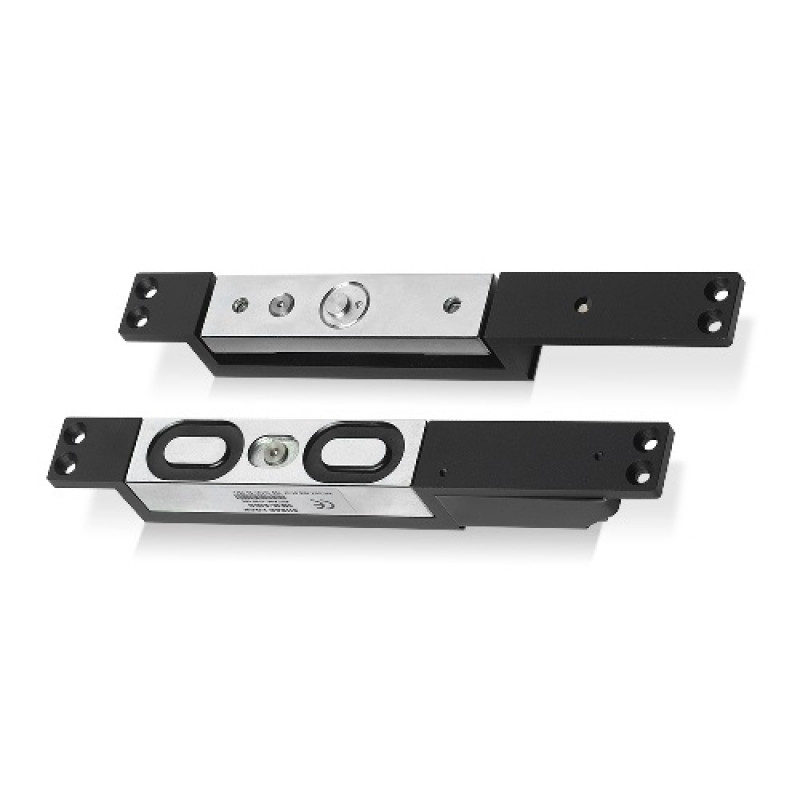

ICS, GS705-30, Shearlock - Monitored 30mm
- Brand:ICS
- Product Code:GS705-30
- Availability:Please Call or Email to Checkout
ICS, GS705-30, Shearlock - Monitored 30mm
Key Features:
- Operating voltage 12~24Vdc
- Holding force in shear up to 2,700lbs (1,226Kg)
- Locking time delay: 1 to 6 seconds (Adjustable)
Specification:
- Voltage tolerance: ±10%.
- Current draw:
- Pull in: 2.2A, Holding: 0.5A at 12Vdc.
- Pull in: 1.4A, Holding: 0.3A at 24Vdc.
- Operating temperature: -30~55°C (-22 to 131°F).
- Lock’s surface temperature: Current temperature: ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status: (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 1A at 30Vdc).
- Humidity: 0~95% non-condensing.
- Horizontal or vertical installation.
- Special Zinc finishes for magnet and armature plate.
- Housing black powder coated.
- Dimensions: 267 × 30 × 34 mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
