SSP, SL183, Micro Shearlock-Monitored Including Auto Re-Lock
- Brand:SSP
- Product Code:SL183
- Availability:Please Call or Email Us to Check Availability

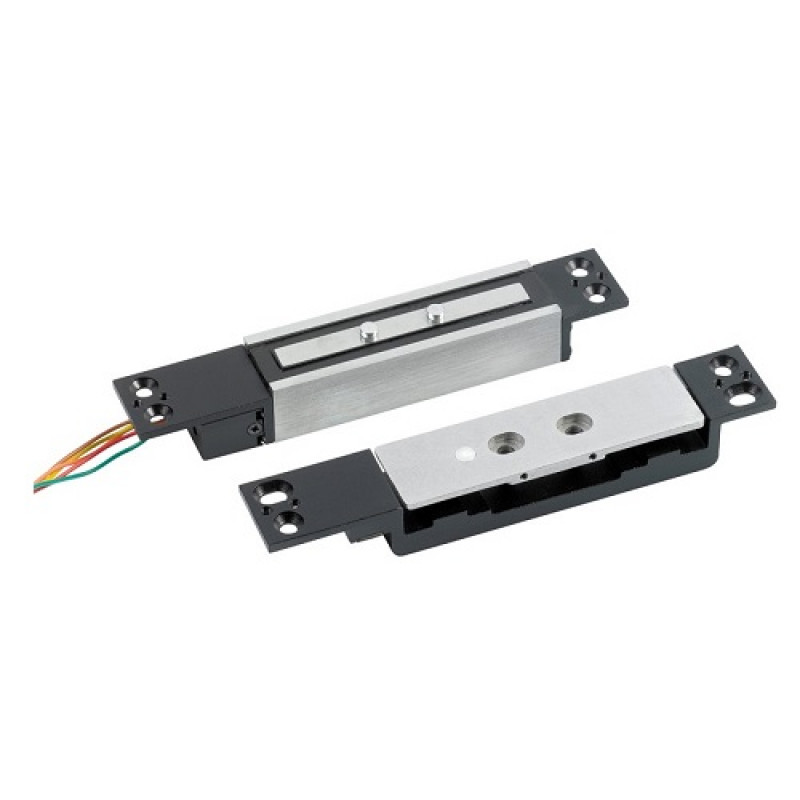

SSP, SL183, Micro Shearlock-Monitored Including Auto Re-Lock
The SL183 is complete with shearlock and is ideal for single action or double-action doors. The ‘Shear’ locking action requires an extremely high force to overcome and mortice installation provides a concealed finish. A surface housing is available if required and a glass-mount saddle kit is also available for glass door and header scenarios.
Key Features:
- Auto relock with adjustable time delay 0.5-25 seconds
- Lock monitoring
- Door status monitoring
- Recommended for horizontal mount
- Mortice fitting
- Surface mount possible using optional housing part ref SL183HOUSING
- Mounting to glass door and glass header possible using part ref SL183HOUSING and SL183GLASSHOLDER.
Specifications:
- Up to 1200kg (2600lb) holding force
- Voltage: 12-24Vdc
- Operation current:900mA@12Vdc, 900mA@24Vdc
- Holding current: 220mA@12Vdc, 190Ma@24Vdc
- Magnetic distance (max):3mm @ 12Vdc, 5mm @ 24Vdc
- Monitoring relay: NO and NC contacts
- Rating: 24V/1A.
