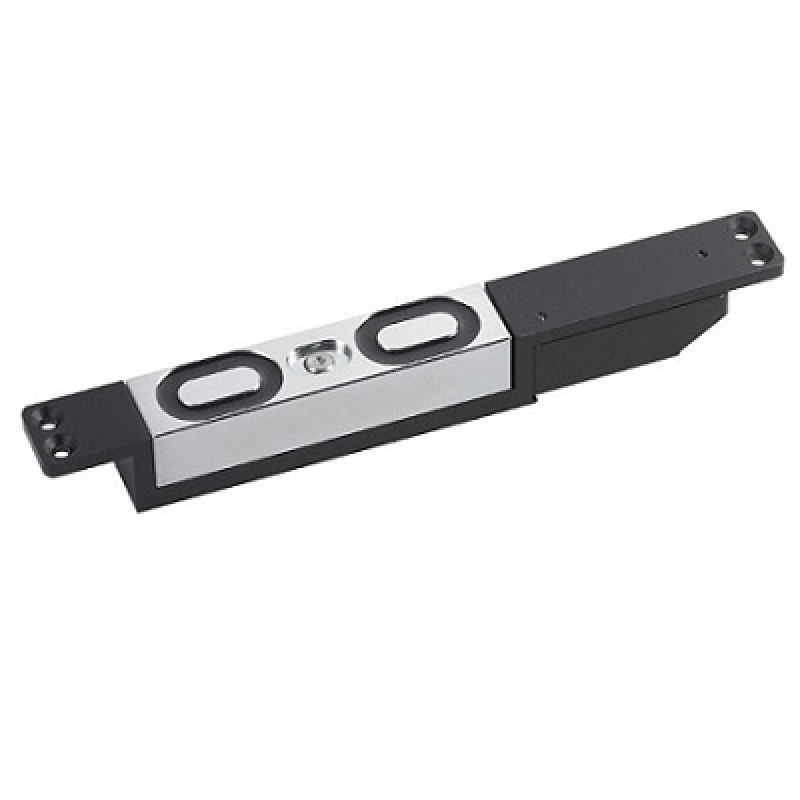

SSP, SL705-30, 30mm Wide Monitored Shearlock Hall Effect

SSP, SL705-30, 30mm Wide Monitored Shearlock Hall Effect

This SL705-30 is complete with monitored shearlock and is recommended for use on doors where a concealed lock is required. Ideal for double-action swing doors (i.e. swings in both directions) or for sliding doors. Suitable for horizontal or vertical installation.

Key Features:

• Mortice fitting.
• Suitable for double swing doors, or sliding doors.
• Horizontal or vertical installation.
• Lock monitoring (magnetic bond sensor).
• Surface housing available (part ARCH705-30).
• Anti-residual magnetism design.
• Locking time delay: 1-6 seconds (adjustable).

Specifications:

• Voltage 12-24Vdc (auto-selectable).
• Current Draw:
  • Pull-in current: 1.7A @ 12 Vdc; 1.1A @ 24 Vdc.
  • Holding current: 500mA @ 12 Vdc; 320mA @ 24 Vdc.
• Lock monitoring contact (SPDT), rated: 1A @ 30 Vdc.
• Holding Force: Up to 909kg (2000 lbs) in shear.
• Permissible gap between lock and armature plate = 3mm max.
