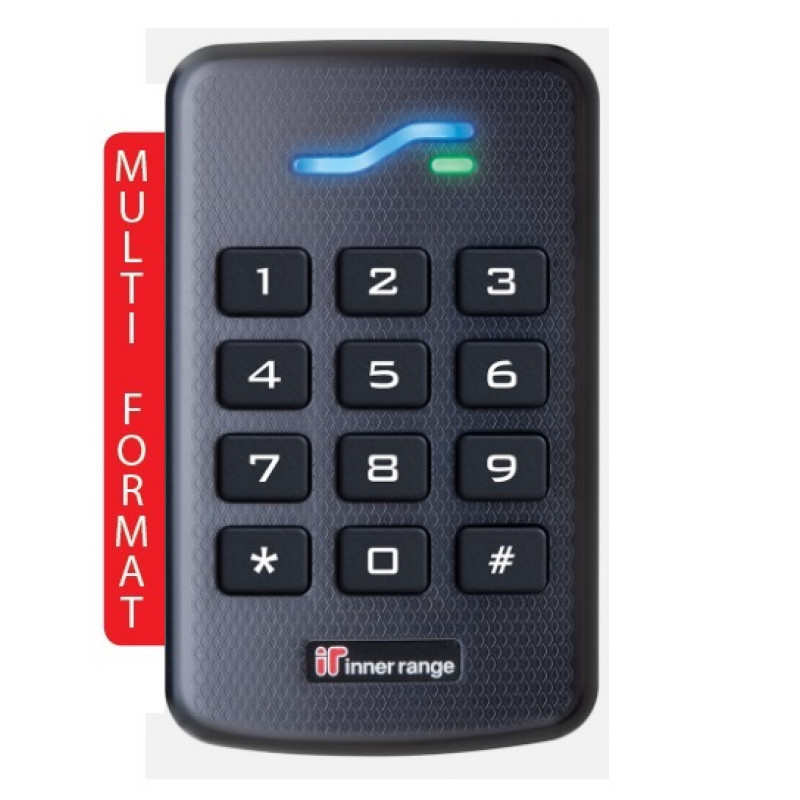

INTG-994725MF, SIFER Keypad, Smart Card Reader Mifare DESfire EV2 Multi Format Version

INTG-994725MF, SIFER Keypad, Smart Card Reader Mifare DESfire EV2 Multi Format Version

  • Brand:Inner Range
  • Product Code:INTG-994725MF
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


INTG-994725MF, SIFER Keypad, Smart Card Reader Mifare DESfire EV2 Multi Format Version

A SIFER Multi-Format Keypad/Card reader is also available and offers an identical set of features to the Standard SIFER Keypad with additional support for reading the CSN of third party 13.56 Mhz credentials.

SIFER Keypad

The SIFER Keypad is a combined IP67 rated Keypad and Smart Card reader that allows dual credential Card & PIN high security access control. (PIN only or Card only is also supported)

The SIFER Keypad is a multi-drop RS-485 device that employs 128 bit AES encryption from the card/keypad through to the door module, providing a far superior level of security than that of traditional Wiegand based keypads & card readers.

SIFER Keypads utilise the Mifare DESfire EV1/EV2 card format. As SIFER Keypads utilise a superset of the OSDP protocol, the keypads may also be deployed on any system capable of using OSDP. SIFER Keypads are connected to the RS-485 reader port for full Reader-In and Reader-Out operation of various Inner Range products as below.

  • Integriti Access Controller (IAC) - Up to 16 Keypads/Readers
  • Integriti Intelligent LAN Access Module (ILAM) - Up to 16 Keypads/Readers
  • Integriti Standard LAN Access Module (SLAM) - Up to 4 Keypads/Readers

SIFER Keypads are IP67 rated and available with site-specific encryption keys.

Features

  • Secure 128bit AES Encryption
  • Encrypted from Keypad/Card through to Access Module
  • Supports Card&PIN, Card only or PIN only modes
  • Auto dimming backlit Silicon rubber keypad
  • Mifare DESfire EV1/EV2 Card Format
  • Water & Dust Resistant to IP67
  • Vandal Resistant (fully potted)
  • Flexible LED colour & function Assignment
  • Audible Buzzer (can use as DOTL)
  • Multi-drop RS-485 Reader LAN
  • Individual Reader Heartbeat Monitoring
  • Integriti Auto Reader Discovery · OSDP Compatible
  • Read Card Serial Number (CSN) From 3rd Party Cards (Multi-Format Version Only)
  • Support for Custom Site Codes and Site Specific Encryption
  • User Programmable Cards Offer Great Flexibility for Installers
  • Global Configuration From Integriti Systems (including firmware updates)
  • Read-Write Functionality
  • Small Footprint (Dimensions: 64 (W) x 106(H) x 18 (D) mm)

Connectivity

The SIFER Keypad Reader connects to the host module via multi-drop RS-485 cabling. Up to 16 Keypad Readers can be connected on the same Reader RS-485 bus.

Communication is via the industry standard and non-proprietary Open Supervised Device Protocol (OSDP) allowing the SIFER Keypad Reader to be compatible with other brands of Access Controllers and share the bus with other manufacturer’s OSDP devices.

When used in an Integriti or Inception system, enhanced OSDP allows for automatic addressing and firmware upgrades over the wire.

SIFER Keypad Reader with the Integriti & Inception Systems

  • Up to 4 x SIFER Keypad Readers can be connected to the Integriti 2 Door - Standard LAN Access Module (SLAM)
  • Up to 16 x SIFER Keypad Readers can be connected to the Integriti 2~8 Door - Intelligent LAN Access Module (ILAM)
  • Up to 16 x SIFER Keypad Readers can be connected to the Integriti 2~8 Door - Integriti Access Controller (IAC)
  • Up to 8 x SIFER Keypad Readers can be connected directly to the Inception Controller (Inception)
  • Any SIFER Keypad Reader can be mapped to any door on the Controller or Access Module
 SIFER Keypad Reader Specifications
PHYSICAL
  Reader Size: 106(L) x 64(W) x 18(D) (mm)
  Keypad Button Size: 12.3 X 9 (MM) Auto-dimming back lit
  Mounting Plate: 102.7(L) x 60.2(W) (mm)
  Mounting Method: 2 x fixing screws for mounting plate
  Mounting Holes: 65.5mm hole spacing
  Mounting Surface: Optimised for flat non-metallic surfaces
  Cavity Cable Entry Hole: Up to 20mm
  Installation Environment: -35ºC to 65ºC @15% - 90% relative humidity (non-condensing)
  Ingress Protection: IP67
READER PROTOCOLS
  Device Communications: Open Supervised Device Protocol (OSDP)
  Operating Frequency: 13.56Mhz
  Credentials: Mifare DESFire EV1/EV2 with AES encryption
    Read Card Serial Number (CSN) from 3rd party cards (MF Model Only)
CONNECTIONS
  Pigtail Cable Length: 500mm
  Pigtail Extension Cable Type: 2-pair 7/0.20 twisted pair data cable as minimum.
2-pair 14/0.20 multi-strand shielded twisted pair data cable is preferred (e.g. Belden 8723).
See installation manual for more info.
  Connection Methods: RS-485 multi-drop star or daisy chain configurations
  Total Overall Cable Length: 1000 meters total on one RS-485 reader port guaranteed
  Max Readers: Up to 16 with IAC & ILAM, Up to 4 with SLAM
  Compatible Integriti Host Modules: Standard LAN Access Module (SLAM), Intelligent LAN Access Module (ILAM), Integriti Access Controller (IAC)
READER SECURITY
  Physical Tamper: Optical beam to mounting surface
  Card to Reader: 128bit AES encryption
  Reader to Access Module: 128bit AES encryption
  Vandal Resistance: Fully encapsulated vandal resistant electronics
READER CONFIGURATION
  LAN Addressing: Fully automatic when used with Integriti systems Manual addressing with 3rd party OSDP compatible systems
  Firmware Updates: Over-the-wire firmware updates when used with Inner Range systems
  Reader Purpose Options: Control a Door, Control a Lift, Log on, Area status toggle
KEYPAD, LED & BEEPER INDICATORS
  Keypad: Backlit auto-dimming silicon rubber keypad with a highly tactile operation fee
  LED Configuration: Brightness, Colours & Feedback modes - configurable via Integriti Software
  LED 1 & 2 Colour Options: RGB Indicator 23 colour selectable
  Feedback Modes for LED’s: Area Status, Area Alarm/Isolated, Entry/Exit Delay, Door open/locked status, Valid/Invalid card badge, No LED’s
  Beeper Feedback Options: Valid/Invalid card badge, Door Open tool long (DOTL), Area Alarm, Entry/Exit Delay
Power Requirements
  Power supply 11V-14V DC< 500mV ripple
  Current consumption 75mA – 115 mA, 165 mA max, depends on LED’s configuration

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
