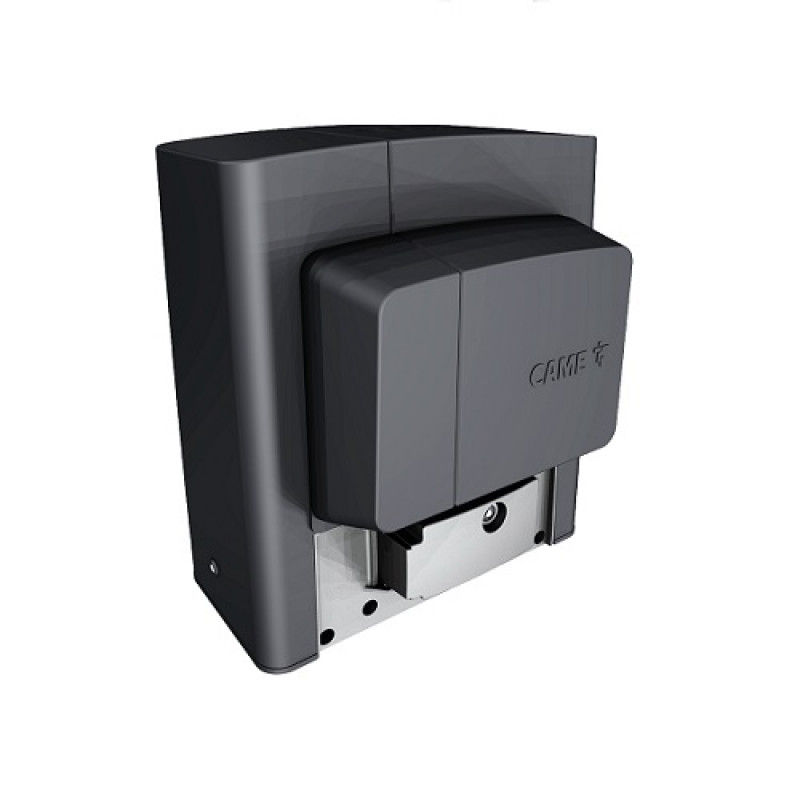

CAME (801MS-0130) BKS22TGS Sliding Gate Motor - 400V Up to 2200kg

CAME (801MS-0130) BKS22TGS Sliding Gate Motor - 400V Up to 2200kg

  • Brand:Came
  • Product Code:801MS-0130
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CAME (801MS-0130) BKS22TGS Sliding Gate Motor - 400V Up to 2200kg

BKS22TGS - Gearmotor for sliding gates weighing up to 2,200 kg that are up to 23-m long.

Key Features:

  • A complete, flexible and safe range to meet different needs, from industrial to heavy-duty operating conditions.
  • Module 4 or 6 pinions for constantly smooth, linear transmission of movement to the rack.
  • It can fit magnetic limit-switches.
  • Control board, with separate terminals and a display, for easier start-ups and diagnoses. Save up to 250 different users.
  • On-board Rolling code and Key Code (Twin) radio decoding.
  • The safety inputs can be configured to directly control the 8k2Ω resistive sensitive-safety edges.
  • Control Rio-series wireless safety-devices via the specific plug-in device.
  • Self-diagnosing safety devices – whether wireless or not.
  • Devices designed for connecting to the Cloud, via CAME Connect.
  • It directly manage CAME keypads via the R800 accessory or connect up CAME transponder selectors via the R700 accessory.
  • The triphase-powered version for 2,200 kg gates is available
  • Compatible with CAME KEY.
  • The movement speed is 10.5 m/minute.
  • The operator can be managed from a remote location via app through the CAME GATEWAY.
  • Available with module 4 and 6 pinion to ensure sturdiness and better quality of movement.
  • Built-in ZBKN control board with display and memory roll, for easier programming and start-up.
  • Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
  • It handles up to 25 Rolling Code users.
  • Self-diagnosing safety devices.
  • It is set up to connect to the wireless Rio safety system.
  • Compatible with CAME KEY.
  • OPERATIONAL LIMITS - LIMITES

Technical Specification:

  • Protection rating (IP): 44
  • Power supply (V - 50/60 Hz): 230 – 400 V AC THREE PHASE
  • Power supply to motor (V): 230 – 400 V AC THREE PHASE
  • Absorption (A): 1,5
  • Power (W): 520
  • Manouvering speed (m/min): 10,5
  • Duty/cycle (%): 50
  • Thrust (N): 1650
  • Operating temperature (°C): -20 ÷ +55
  • Motor’s heat protection (°C): 150
