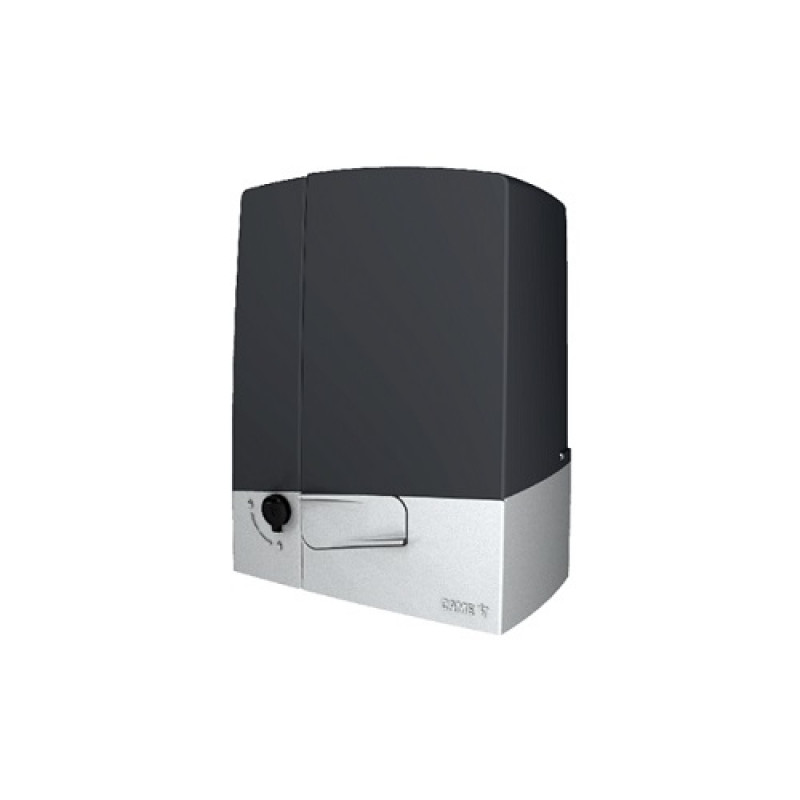

CAME (801MS-0230) BXV10AGS Sliding Gate Motor 24V up to 1000kg
BXV10AGS - Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-grey cover.
Key Features:
- Operator with encoder also in the rapid version.
- Set up for operation in case of power outage.
- Set up for installation of magnetic limit switches and heater.
- Control board with terminal blocks, display and storage for up to 250 users.
- Self-diagnosing safety devices.
- Paired connection via the RSE accessory.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
- Five different motor types, all with encoder control, also available in the RAPID and TALL versions.
- The operator can be managed from a remote location via app through the CAME GATEWAY.
- New key-protected, manual, mechanical system to release the gate leaf.
- ZN7 control board, with separate terminals, and display, for easier start-ups and diagnoses.
- Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
Technical Specification:
- Protection rating (IP): 44
- Power supply (V - 50/60 Hz): 230 AC
- Power supply to motor (V): 24 DC
- Power (W): 400
- Manouvering speed (m/min): 11 MAX
- Duty/cycle (%): HEAVY-DUTY SERVICE
- Thrust (N): 1000
- Operating temperature (°C): -20 ÷ +55
