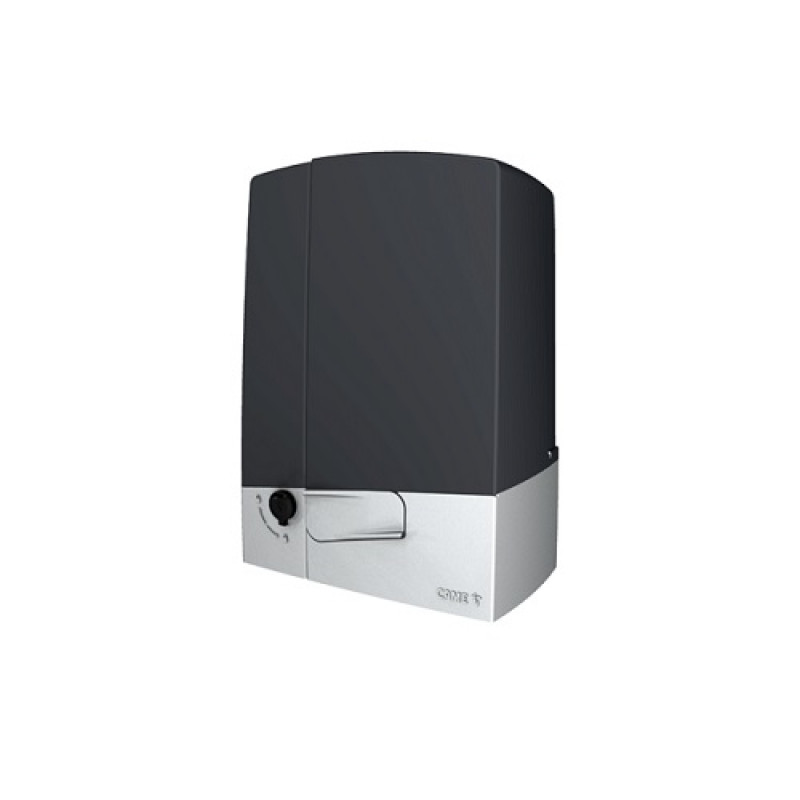

CAME (801MS-0250) BXV10AGF Sliding Gate Rapid Motor 24V up to 1000kg

CAME (801MS-0250) BXV10AGF Sliding Gate Rapid Motor 24V up to 1000kg

  • Brand:Came
  • Product Code:801MS-0250
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CAME (801MS-0250) BXV10AGF Sliding Gate Rapid Motor 24V up to 1000kg

BXV10AGF - Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).

Key Features:

  • Operator with encoder also in the rapid version.
  • Set up for operation in case of power outage.
  • Set up for installation of magnetic limit switches and heater.
  • Control board with terminal blocks, display and storage for up to 250 users.
  • Self-diagnosing safety devices.
  • Paired connection via the RSE accessory.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
  • Five different motor types, all with encoder control, also available in the RAPID and TALL versions.
  • The operator can be managed from a remote location via app through the CAME GATEWAY.
  • New key-protected, manual, mechanical system to release the gate leaf.
  • ZN7 control board,with separate terminals, and display, for easier start-ups and diagnoses.
  • Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
  • Ready to fit magnetic limit-switches and heater unit for extreme weather applications.
  • It works even during power outages by fitting emergency batteries in the specific housing.
  • It is set up to connect to the wireless Rio safety system.



  • Protection rating (IP): 44
  • Power supply (V - 50/60 Hz): 230 AC
  • Power supply to motor (V): 24 DC
  • Power (W): 360
  • Manouvering speed (m/min): 20
  • Duty/cycle (%): HEAVY-DUTY SERVICE
  • Thrust (N): 450
  • Operating temperature (°C): -20 ÷ +55

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
