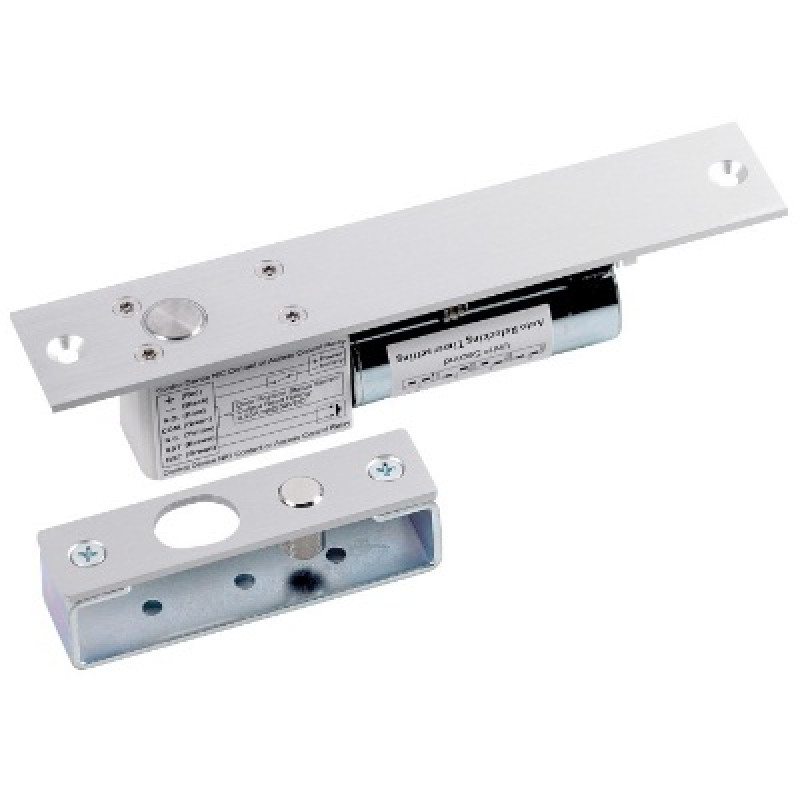

SSP, EB200N-38, 38mm Wide Solenoid Bolt
- Brand:SSP
- Product Code:EB200N-38
- Availability:Please Call or Email Us to Check Availability
SSP, EB200N-38, 38mm Wide Solenoid Bolt
The EB200N-38 Solenoid bolt provides a secure locking method for Single or Double-action doors, and includes Door position Monitoring and variable re-locking delay.
Key Features:
- Fail safe operation (power to lock)
- Selectable Face plates:
- 203mm x 38mm (Aluminum)
- 225mm x 42mm (Stainless steel)
- Door Position monitoring
- Variable re-lock delay
- Mortice Installation
- Low Holding current
- Anti-Tamper design
- Suitable for Single or Double-action doors
Specification:
- Input Voltage: 12Vdc ±10%
- Activating Current 900mA @ 12Vdc
- Holding Current 300mA @ 12Vdc
- Monitoring Contacts: SPDT (COM, NO, NC) rated 250mA @ 30Vdc
- Re-lock Delay settings: 0s, 3s, 6s, 9s
- Bolt Diameter 15.5mm
- Bolt Throw 16.5mm
