TDSI, 5002-4000, SOLOgarde Stand Alone Door Control Panel for 1,000 Users
- Brand:TDSi
- Product Code:5002-4000
- Availability:Please Call or Email to Checkout

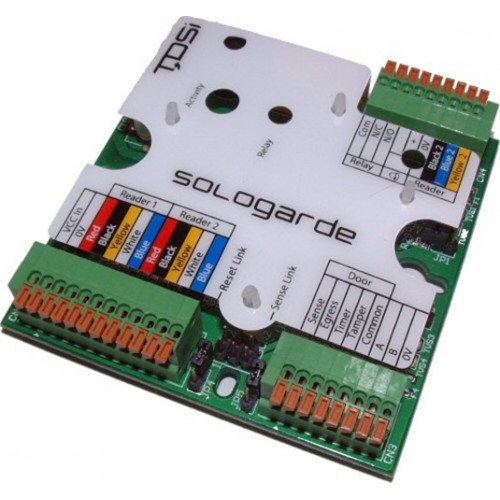

TDSI, SOLOgarde Stand Alone Door Control Panel for 1,000 Users [ 5002-4000]
Overview:
SOLOgarde a stand alone access control solution from TDSi provides both installer and user an access control system which is convenient and easy to set-up and operate. The control unit mounted on the secure side of the door is separate to the reader providing maximum security.
The system is based on the MIFARE® smart card technology allowing the card to be used not only for
access control purposes but also in other applications such as library, cashless vending and POS offering the user a truly one-card solution.
SOLOgarde is programmed through the use of card packs that are available in various denominations.
However unlike offerings from other access control manufacturers a simple hand-held programming tool negates the need for shadow cards to be retained, making administration and management of the system simplicity in itself.
Features & Benefits:
- MIFARE smart card technology base offers markedly increased security over normal proximity methods
- Card programming through the reader provides an easy method of quickly putting the system into service
- Innovative hand-held programmer for deletion of cards removes the need to manage and control shadow cards
- Offers the user and installer a wide range of additional functions increasing system flexibility
- DDA user group automatically applies extended lock time to selected users ensuring compliance with the DDA
- Time group feature provides a means of applying simple schedules to users
- Diagnostic tools and visual indication provides valuable assistance to the system administrator in the event of faults minimising down-time
- Output can be used to activate external devices in the event of an alarm condition occurring providing clear visual or audible alerts
- Flash upgradeable firmware – keep the controller up-to-date with the latest product improvements
- Egress and second reader input provides the user with exit options – use an exit button or a SOLOgarde reader
- Simple mounting into a standard MK style electrical back-box – no special enclosure required
- Spring-loaded terminal blocks mean quick and simple connection of cabling to the controller thereby reducing installation time and cost
- Available as a convenient starter kit including controller, reader and card pack
- Use the controller to set or unset an intruder alarm system on presentation of a card
- Unlock and relock a door on presentation of a card. Ideal for lecture theatres, meeting rooms etc.
Technical Specifications:
- Dimensions Controller: 80 x 80 x 18 mm
- Weight Controller: 5 g
- Operating Environment: -20°C to +60°C, 0 to 95%RH (non-condensing)
- Power Supply: 10 to 14 VDC @ 100 mA maximum
- Capacity: 1,000 cards
- Readers: 1 or 2 TDSi SOLOgarde readers
- Doors: 1
- Inputs: Inputs for egress button, door sense, tamper and clock timer for controlling the time
group function. - Outputs: 1 change-over relay for lock or other equipment (rated at 1A @ 30 VDC) 1 solid state alarm output for connection to external sounding or visual indication device.
- Time groups: 2 (users can be members of either or both time groups). Function requires connection
of a suitable clock timer. - Anti-passback: No
- Mantrap function: No
- Communications: RS-485 for programmer connection.
For more details, please refer with our attached datasheet.
