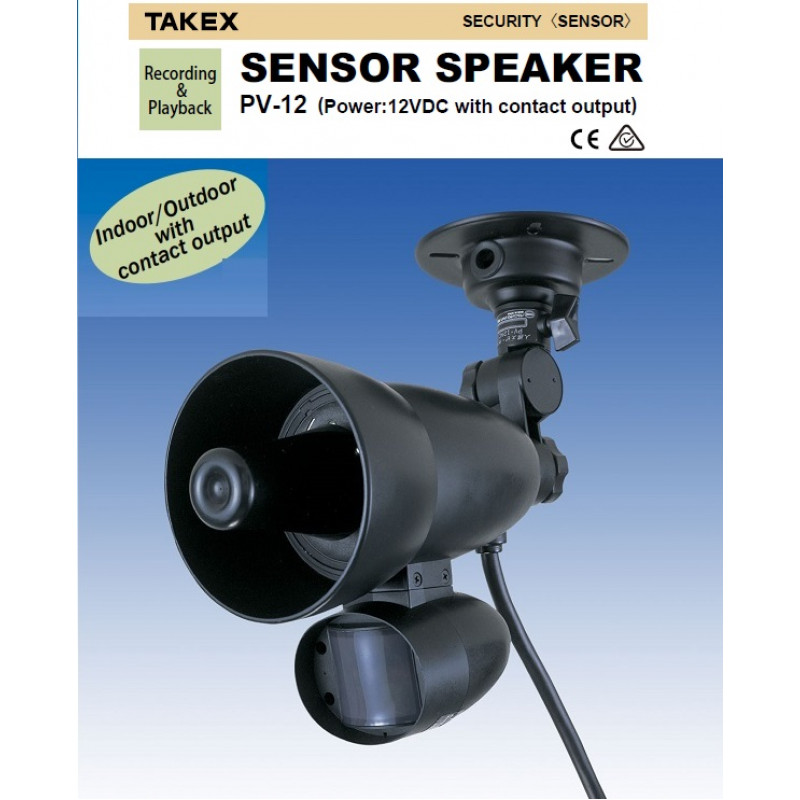

TAKEX (PV-12E) 100dB Horn Speaker with Built-in 12m x 75 degree PIR
- Brand:Takex
- Product Code:PV-12E
- Availability:Please Call or Email Us to Check Availability
TAKEX (PV-12E) 100dB Horn Speaker with Built-in 12m x 75 degree PIR
The PV-12E sensor speaker is designed to play a recorded message when the 12m PIR sensor detects the movement of people or vehicles.
Common applications include welcoming messages at building entrances, or alarm or warning messages at construction sites and other dangerous areas.
- Integrated 12m PIR
- Record a message (up to 12 secs.) using built-in microphone
- Omni-directional bracket
- Memory back-up for 20 days without power
- Horn speaker type 100dB/1m (max)
| SPECIFICATIONS | |
|---|---|
| Type |
Sensor Speaker
|
| Detection system |
Passive infrared
|
| Coverage |
Wide angle 40’ (12m) Max.
|
| Sensitive zone |
24 zones (12 pairs)
|
| Supply voltage |
10 to 14VDC (non-polarity)
|
| Current consumption |
20mA or less (Stand by)
500mA or less (Max.) |
| Alarm output |
Dry contact relay: form C
AC/DC 30V 0.5A (Resistive load) Contact operation: synchronized with recoding time. (min 2 secs.) |
| Warm up time |
60 secs. (no detection, recording O.K.)
|
| Sound synthesis method |
PCM method
|
| Record method |
Built-in condenser microphone
|
| Record / Playback time |
Max. 12 secs.
|
| Sound output |
Operation:
One-shot playback (12 sec.) by detection signal (No retrigger during playback) Sound volume: Max.100dB/2W(1m ahead) at right recording level Adjustable from 0 to Max by volume switch |
| LED indicator |
(During recording) Recording level is indicated:
good: flashing, too low: Lights on, too loud: off (During playback) Light on during playback time (12 sec.) |
| Sensitivity adjustment |
Variable 20%(L) to 180%(H) (medium : 100%)
|
| Mounting position |
Indoor / outdoor (rainproof)
|
| Weight |
Approx. 1000g
|
| Appearance |
Body: Resin (Black)
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-20°C to + 50°C without condensation and freeze
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
